AN APPROACH TO AUDIO FREQUENCY AMPLIFIER DESIGN



From: http://retrolib.net/books2/approach.pdf

http://www.scribd.com/doc/34672356/GEC-Approach-to-amplifiers



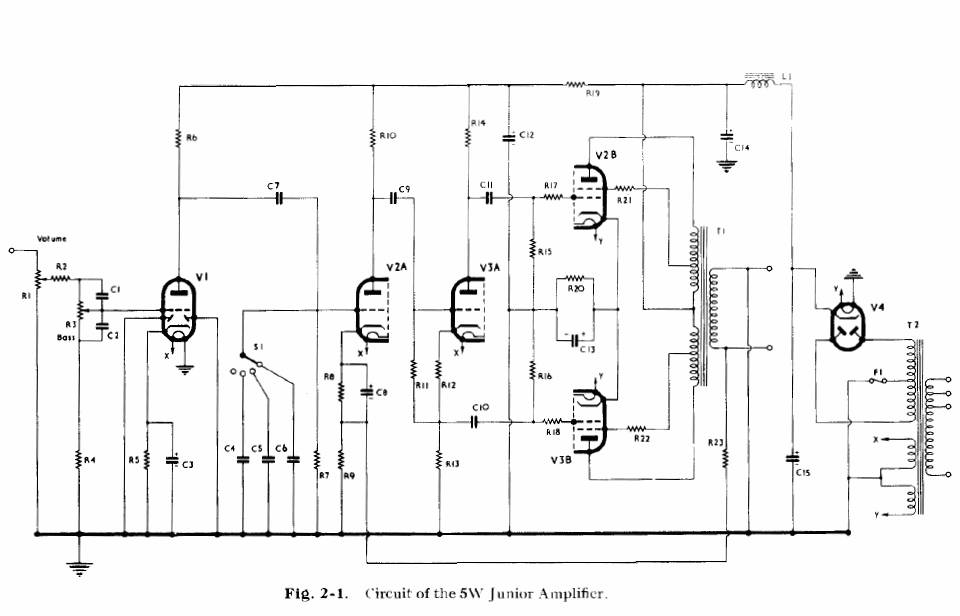

GEC amplifiers Grade1







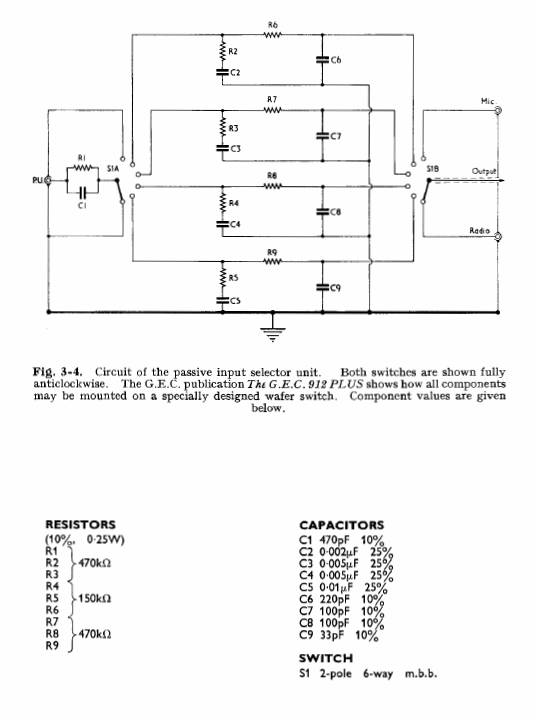

Pré-amplificador -passivo





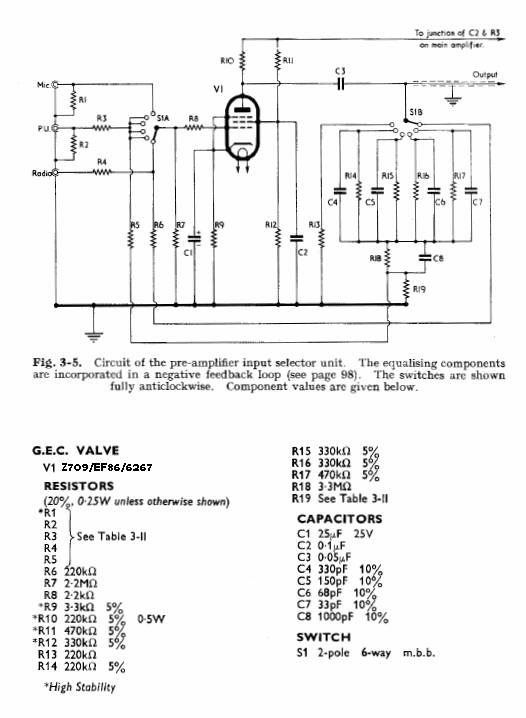

Pré-amplificador -ativo









xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx





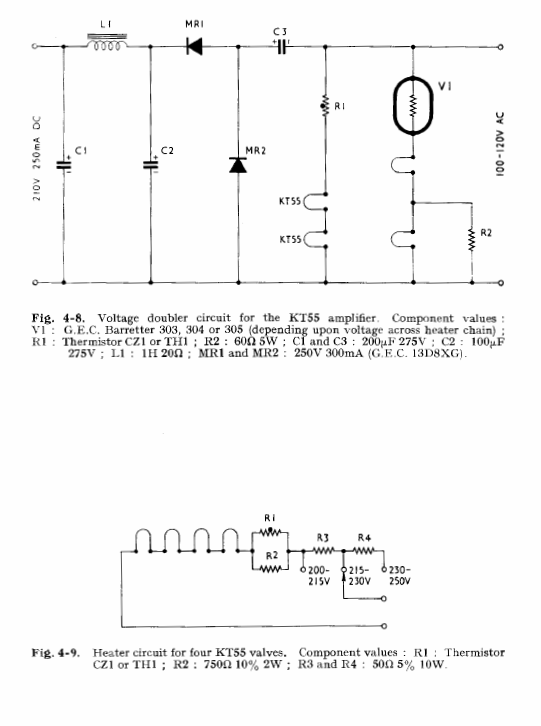

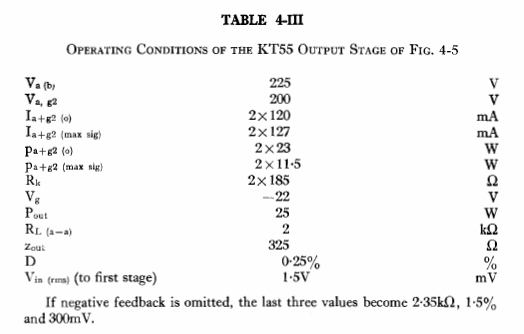

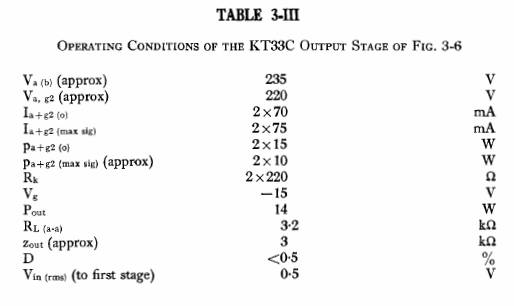

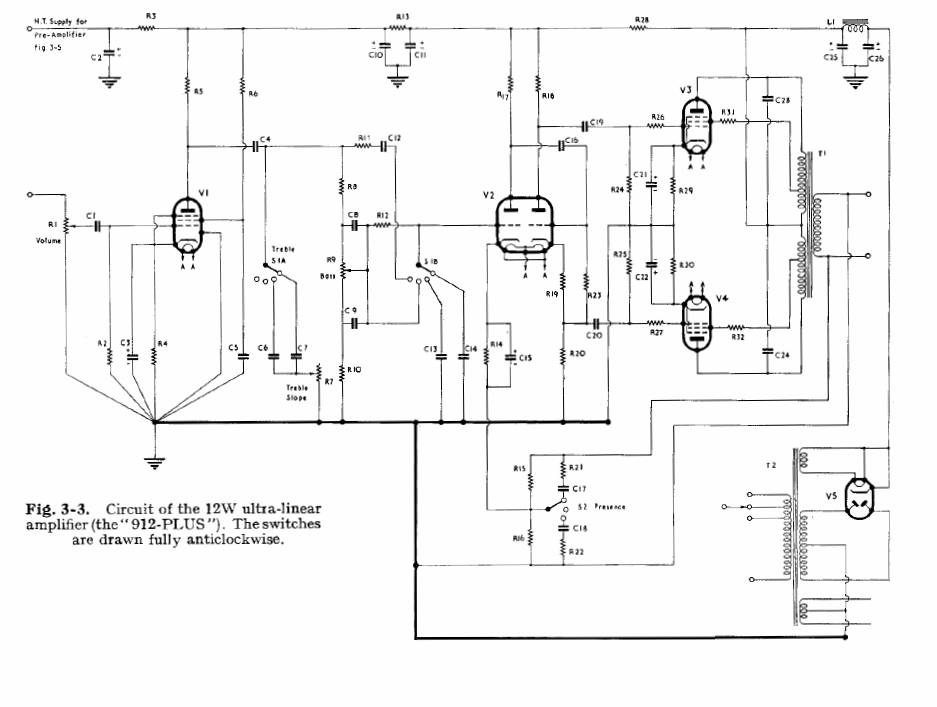

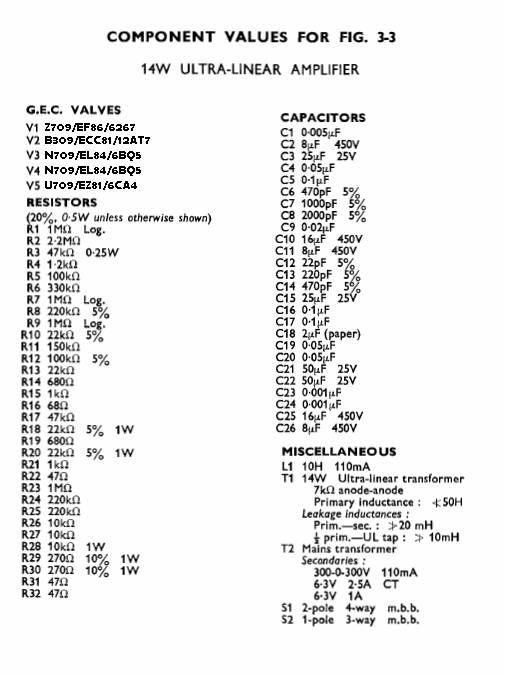

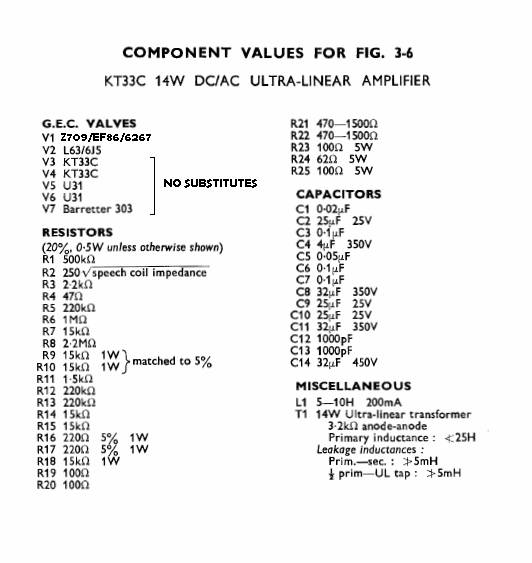

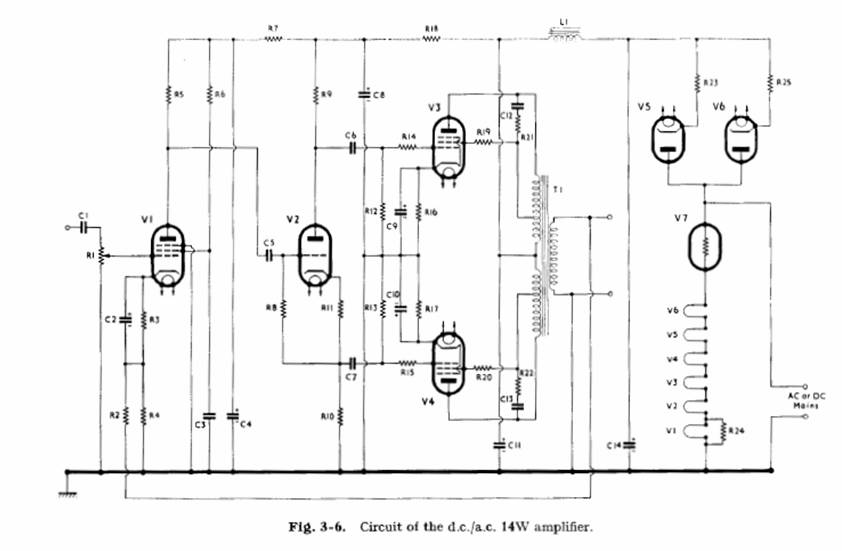

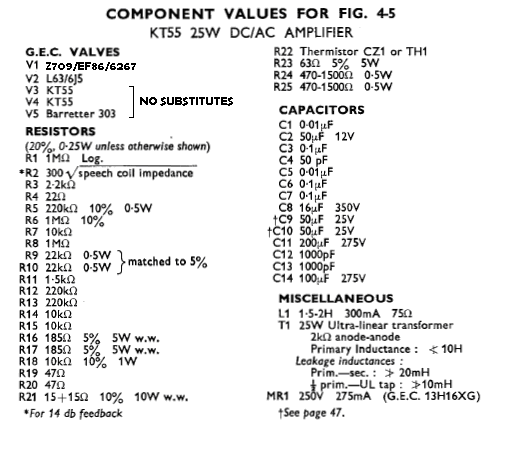

GEC amplifiers Grade 2





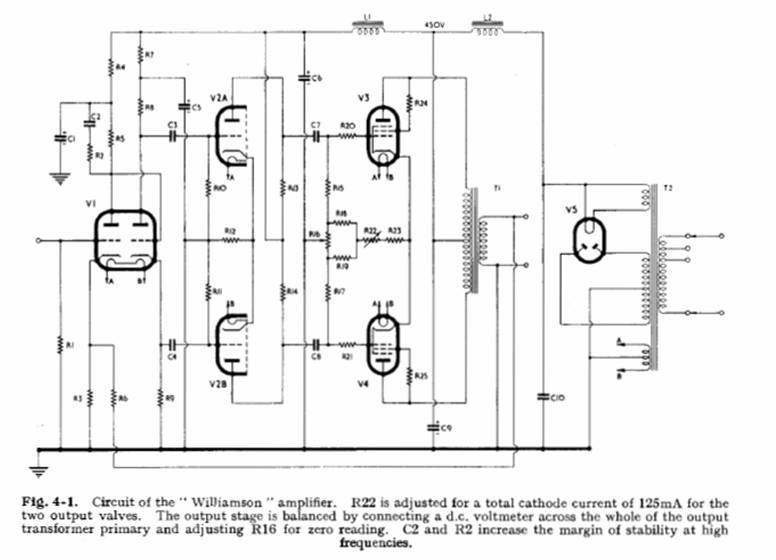

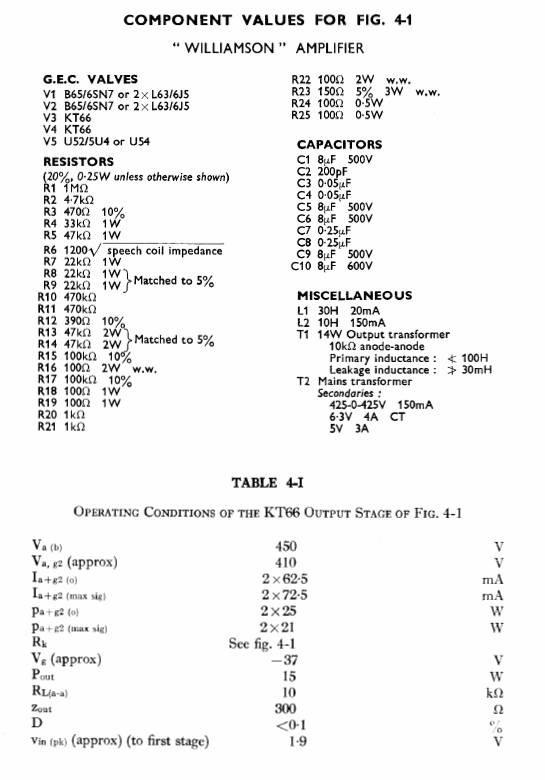

Duas versões Williamsom a original e a Ultra Linear



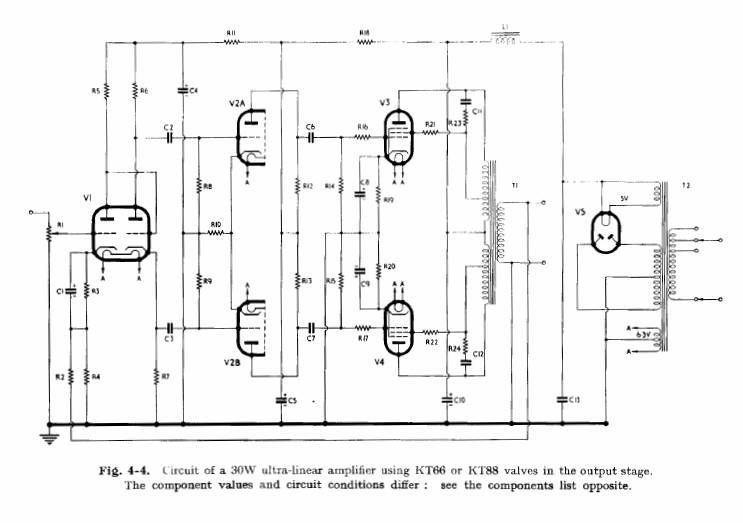

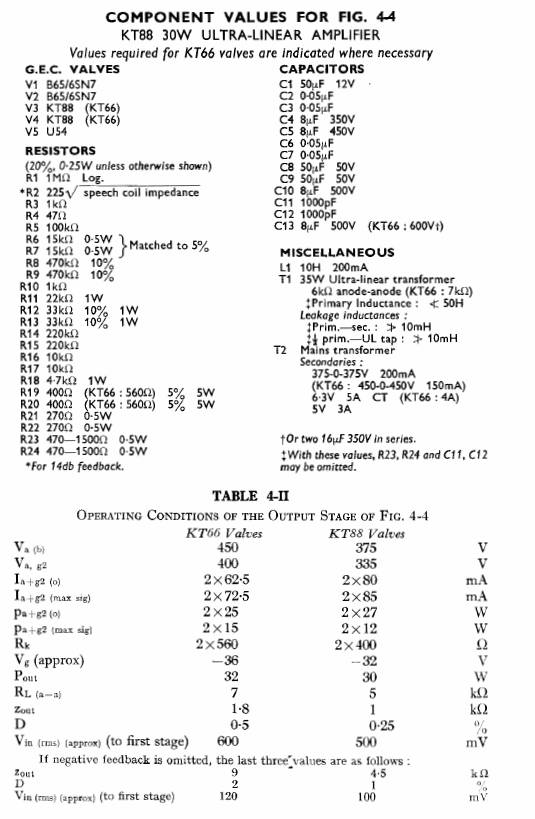

Tamanho grande apenas na Williamsom Ultra Linear

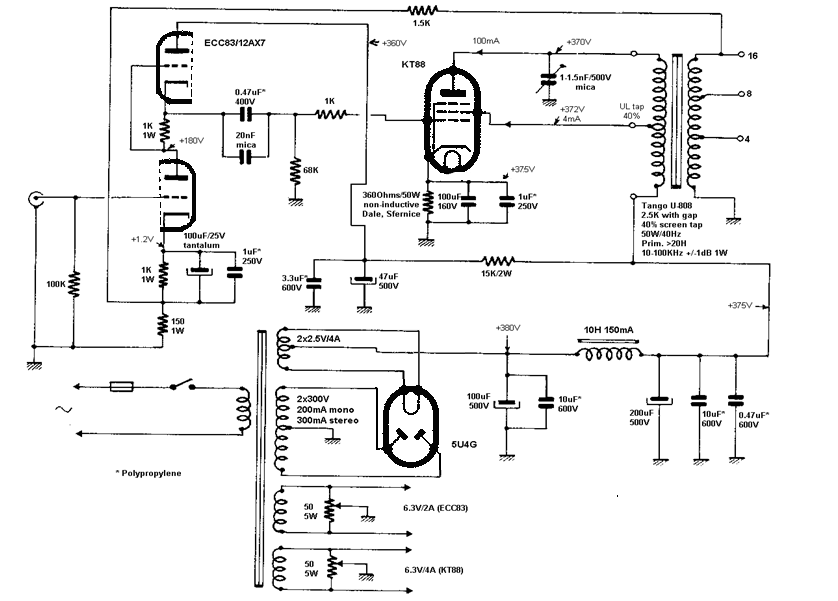

Single Ended KT88



xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
