 COMPACT NIGHT MONOCULAR HELIOS-01 VIDEO CAMERA MOUNT

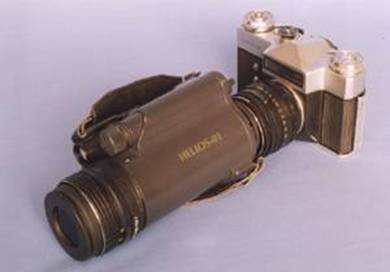

Compact night monocular Helios-01 video camera mount



Optical Specifications

Visual range, m



moonlight conditions

250

starlight conditions

100

with illuminator in full darkness

100

Generation of image intensifier

0

Field of view, deg

20

Magnification, x

1.8

Diopter adjustment, diopter

+4

Focus range, m

0.5 ┘ 

Max switch on time, sec

2

Batteries

AA x 2

Weight, kg



without carrying bag

0.915

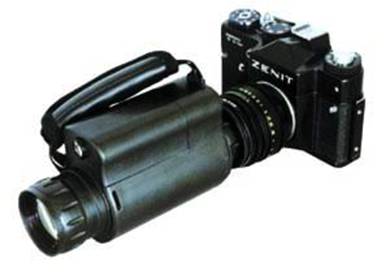

CAMERA MOUNTING WITH

"HELIOS-5" NIGHT POCKET SCOPE


Camera mounting

Instrument Specifications

Identification range for man sized target under natural illumination 5х10-2 lx



150

Magnification

3х

Field of view

10°

Focal length, mm

90

Eyepiece diopter adjustment range, d

±3 дптр

Supply voltage, V

3

Power supply

two AA batteries





Continuous operation time under standard environmental conditions at T= +20 ±5°С:
w/o IR illuminator,
with IR illuminator



25
10





Overall dimensions, mm

190x95x6288

Weight, kg

0,5кг
  • light filter for high light conditions;
  • standard photo lens compatible (M42x1, back focal length 45.5 mm);
  • soft rubber eyeshield;
  • eyepiece adapter kit to photo- and video-cameras provided with light filter threads М49х0.75, М52х0.75 and М37х0.75;
  • rigid waterproof design;
  • operating temperature range from - 10 (-35°) to 40° С, low temperature is limited by type of battery.
