Ensign

butcher’s Reflex Carbine

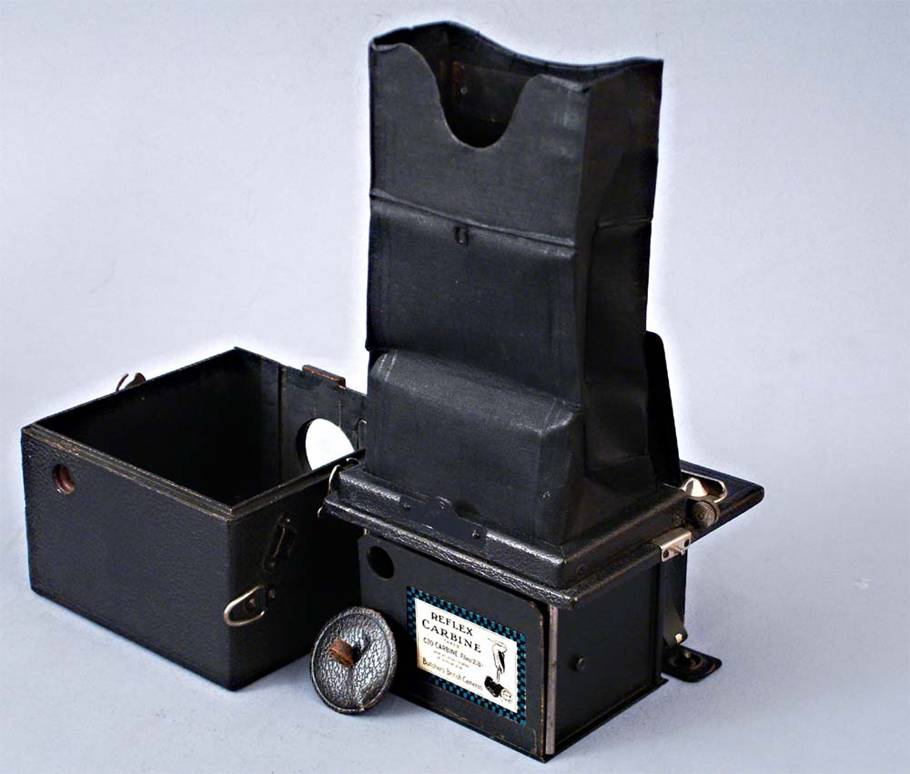

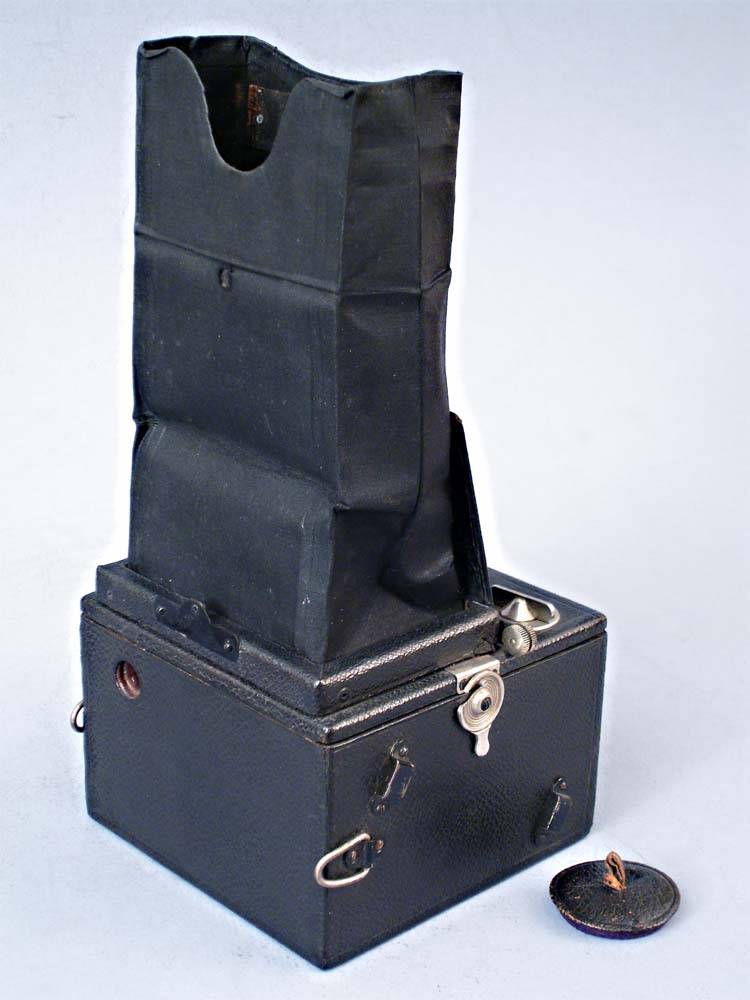

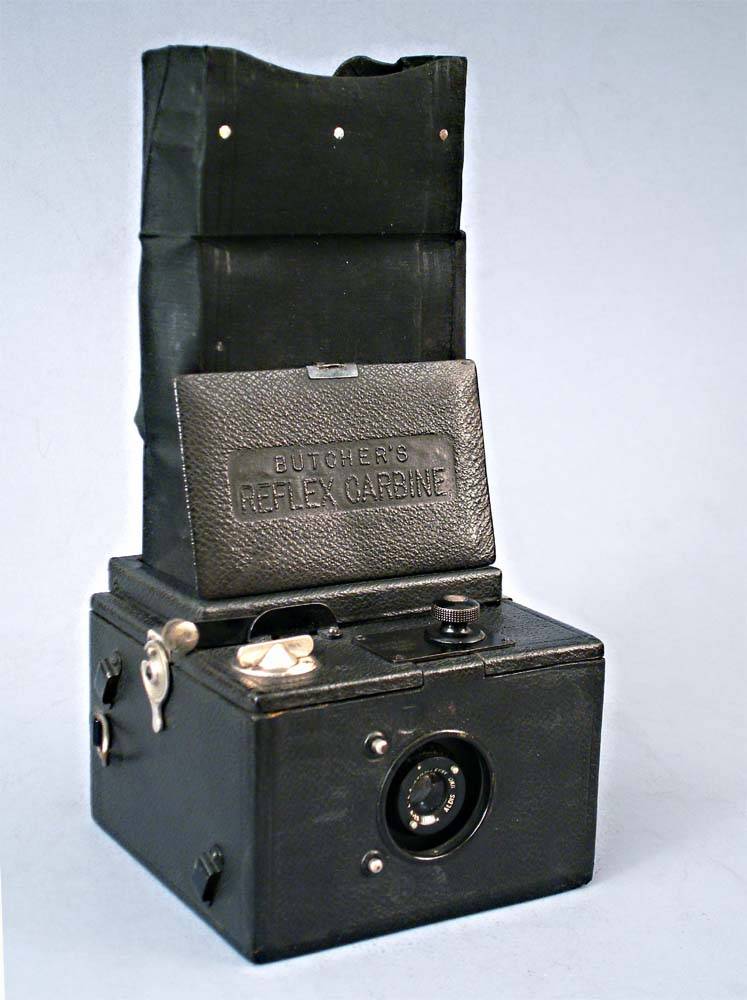

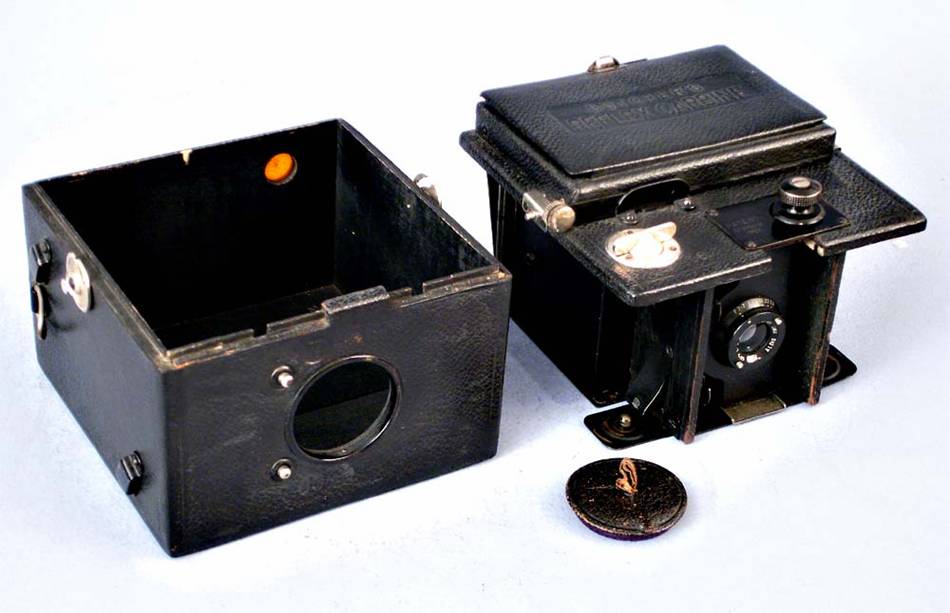

Butcher & Sons Carbine Reflex (8 pictures on 120 film), 1910, Aldis Uno Anastigmat 7,7 / 4,25 inch lens.

  DESCRIPTION:

• Body: Leather covered wood body (black morrocco leatherette)

• Dimension: 5 1/2” x 5” x 3 1/2” • Weight: 1 lb 8 oz (700 g.)

• Type: box

• Lens: Aldis Uno Anastigmat 7,7 / 4,25” lens

• Speed: Instant and time exposures controlled by two different firing buttons

• Mirror type shutter cocked at top right side.

• Reflex through the lens finder.

• An atempt to offer a low priced SLR.

• Aperture: three sizes stops (7,7 / 12,5 / 18)

• Film type: No C-16 or 120 rollfilm

• Image size: 2 1/4” x 3 1/4” (6 x 9 cm)

• Made by Houghton-Butcher Mfg Co Ltd

• Built ftom 1910 to 1925

• Made in England - London

• Film advance and focus knobs on the top.
