FKP-2-2

SOVIET PHOTO GUN CAMERA

for

 AIRCRAFT




made by factory "KOMZ" (Kazan)

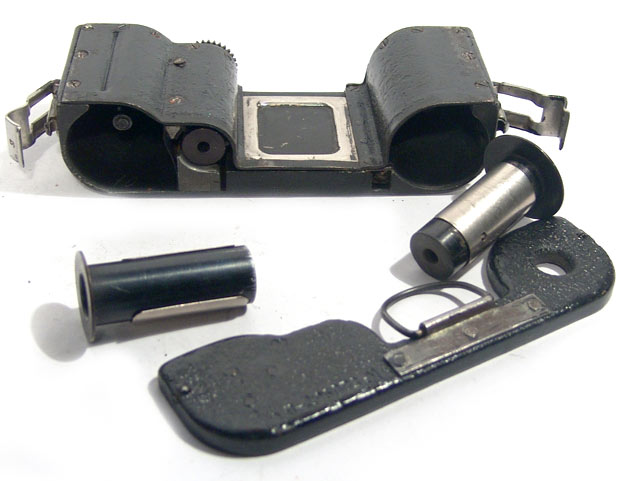

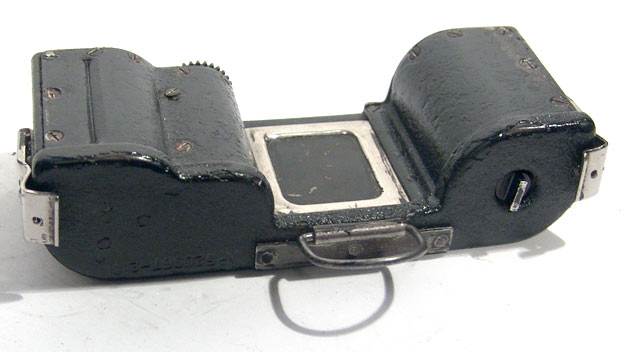

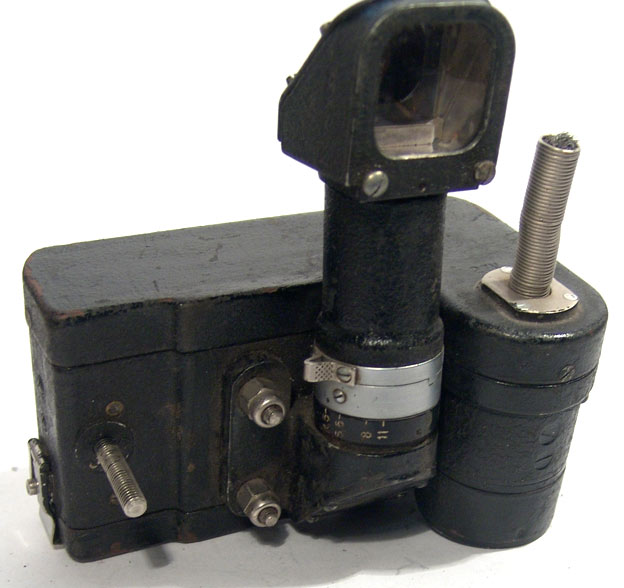

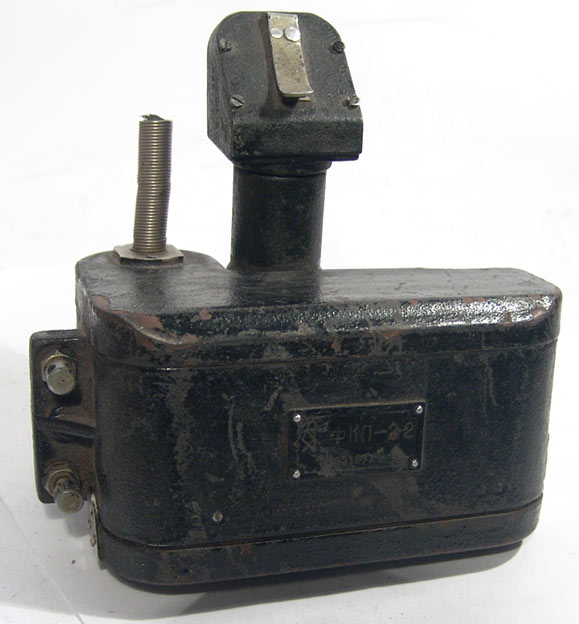

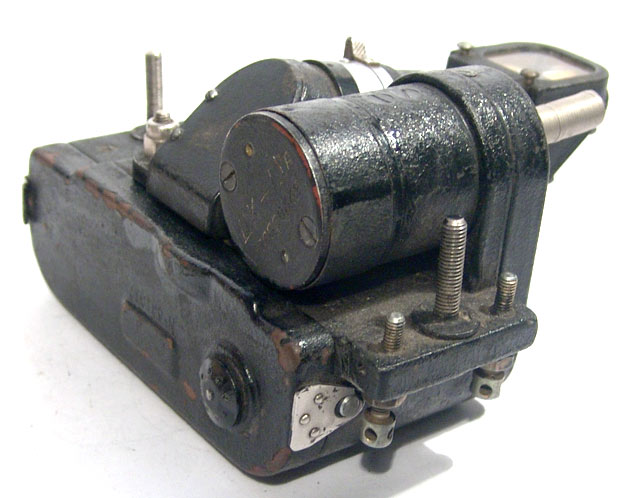

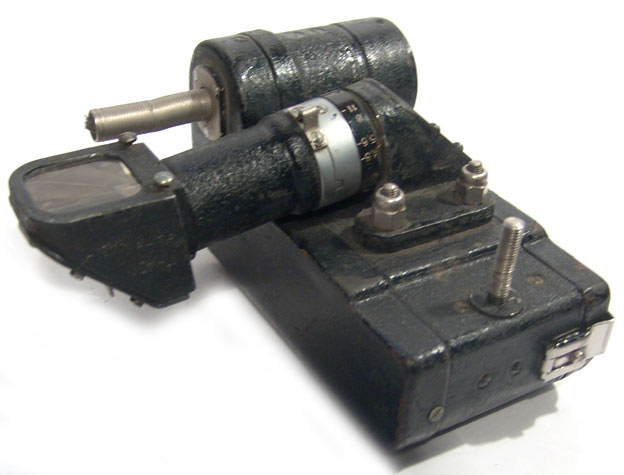

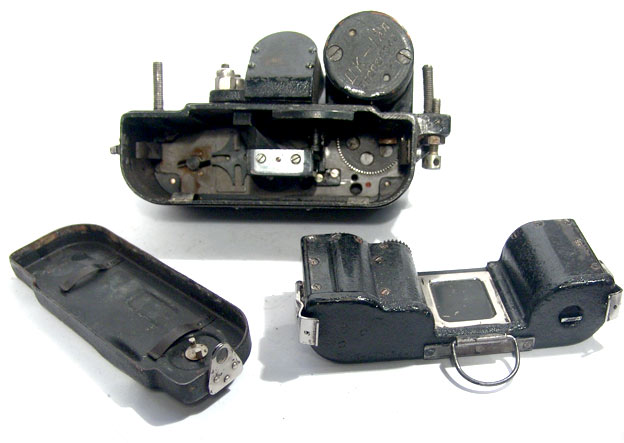

Extraordinary military sequence camera electrically operated by 24 V motor from airplane. 35mm film loaded in special quick change magazine inserts. Bottom loading. 24x36mm picture size. Fixed 1/500s shutter speed. Industar 23  lens, permanently focused at infinity; 110mm f4.5 mounted in periscope mood. Diaphragms 4.5 to 11 manually positioned. The film is advanced through a special Maltese Cross mechanics. The camera is mounted in the airplane machine gun through two screws placed in the front of the body.

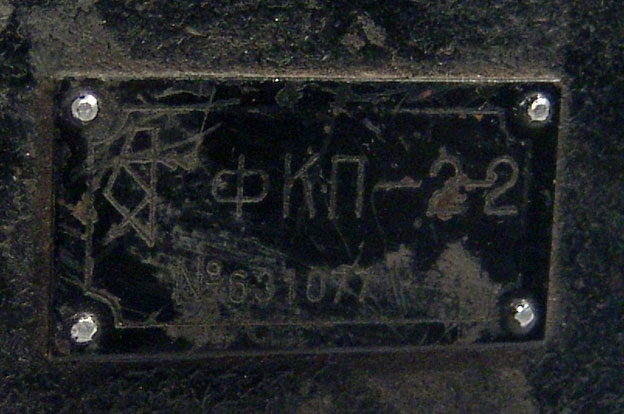

Serial numbers

body

631077

lens

Industar 23

Technical data

Frame size

24X36mm

Diaphragm

from 4.5 to 11

Lenses:

 Industar 23
