Noble 3-35



http://www.novacon.com.br/odditycameras/noble335.jpg

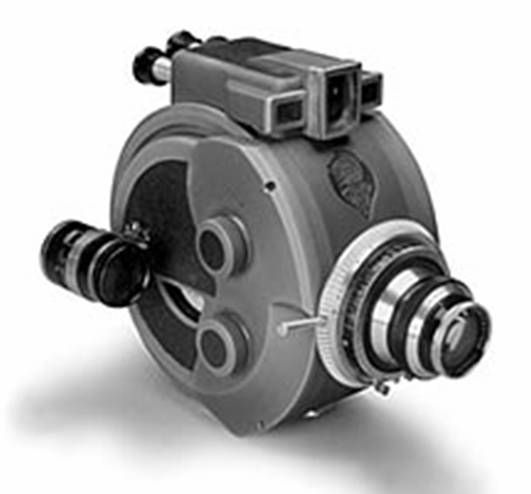

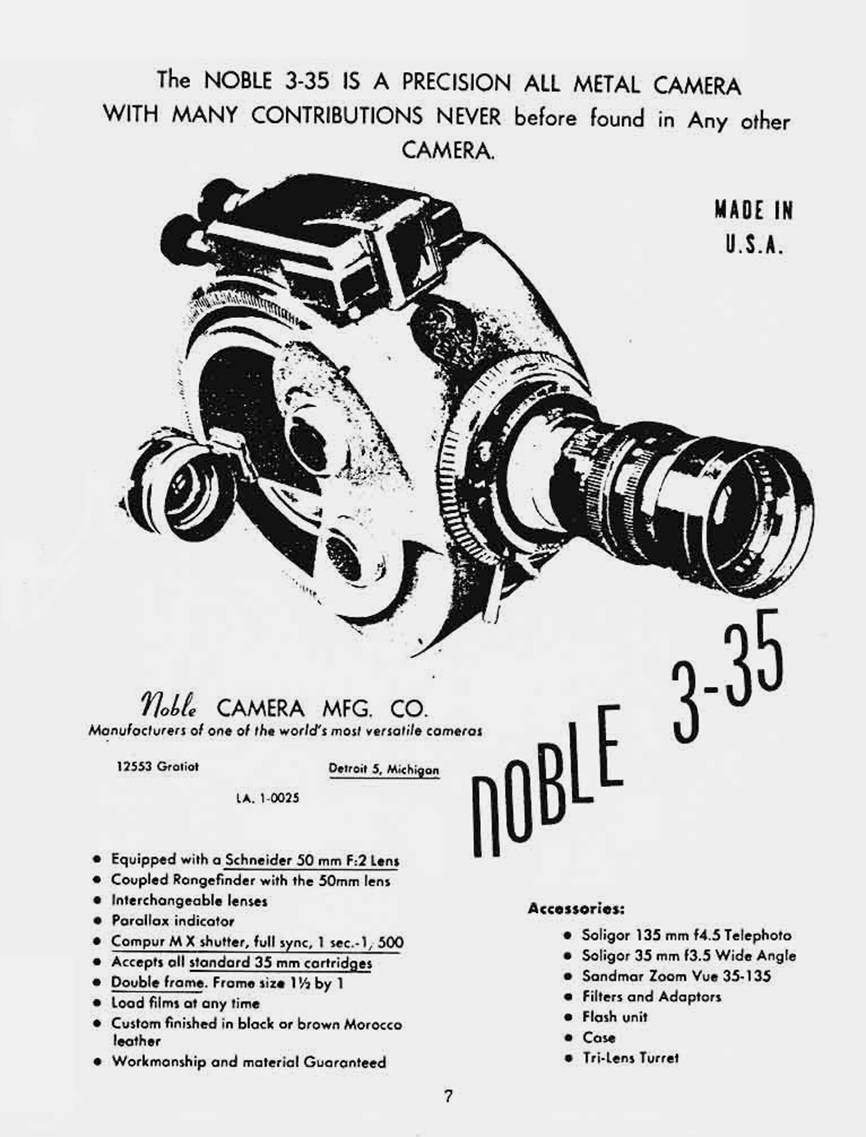

We see here the Noble 3-35.

This camera produced in small quantities 1961/1962 used three 35 films, radially mounted in a turn around internal barrel.

Used a f2/50mm Schneider normal lens of Diax design.  Have telephoto and wide angle  Soligor lenses built for Argus C3 . Uses Sandmar Universal finder designed for Argus C44 and has a Viewfinder/coupled rangefinder based on Medalist camera.

The large size Synchro Compur is of the same standard used on Linhof 4x5 Super-Technika.



                                                                                                          Courtesy Marty Magid

http://www.loylessfuneralhomes.com/obit_images/memorial/4880_memorial.jpg

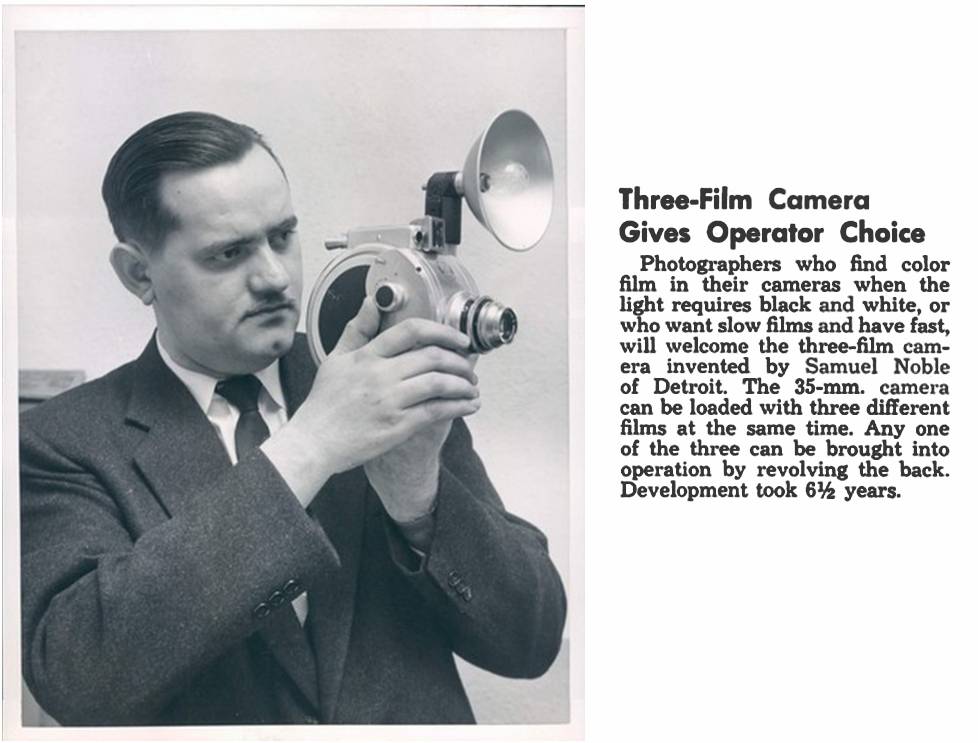

Samuel Noble and his camera. Camera from the George Eastman Museum

Always drawn to photography, Sam operated a photo finishing business in the 1950s while living in Harper Woods, MI. He later opened a camera manufacturing company where he built a unique 35mm camera designed to hold three rolls of film at one time allowing a photographer to quickly change between film types. Later he partnered with Charles Helin, inventor of the Flatfish fishing lure, to manufacture the first pocket camera utilizing a film cartridge.





Samuel Noble & Charles Helin, film cartridge pocket camera.

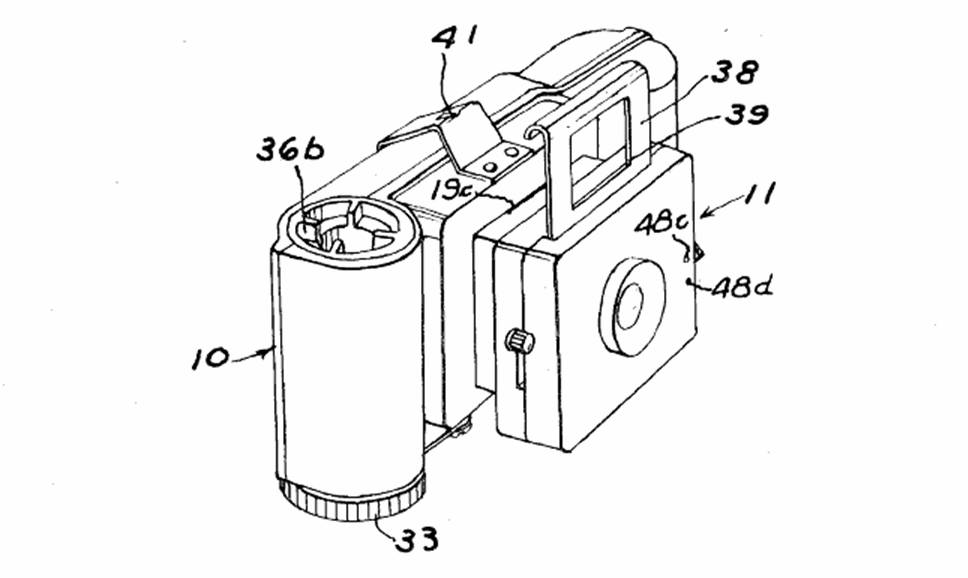

Patent Draft

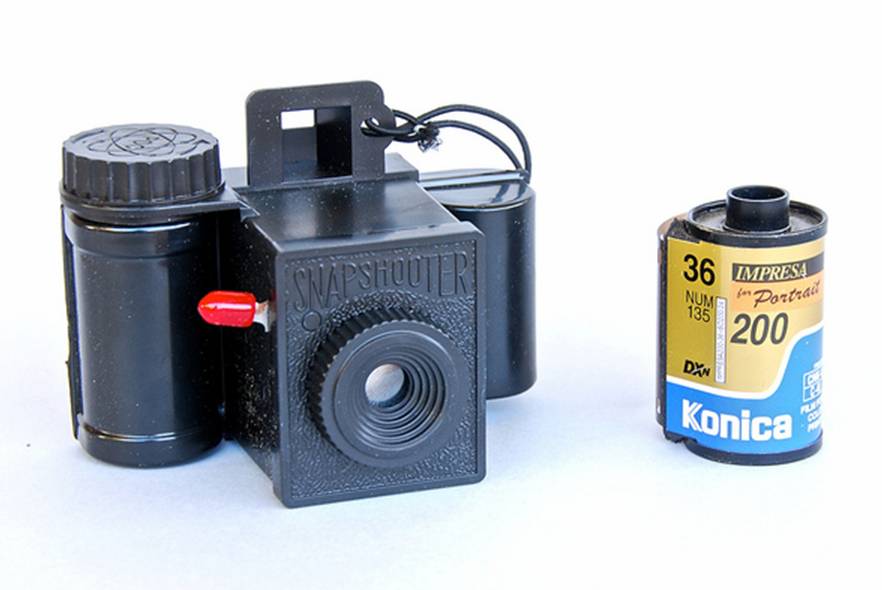

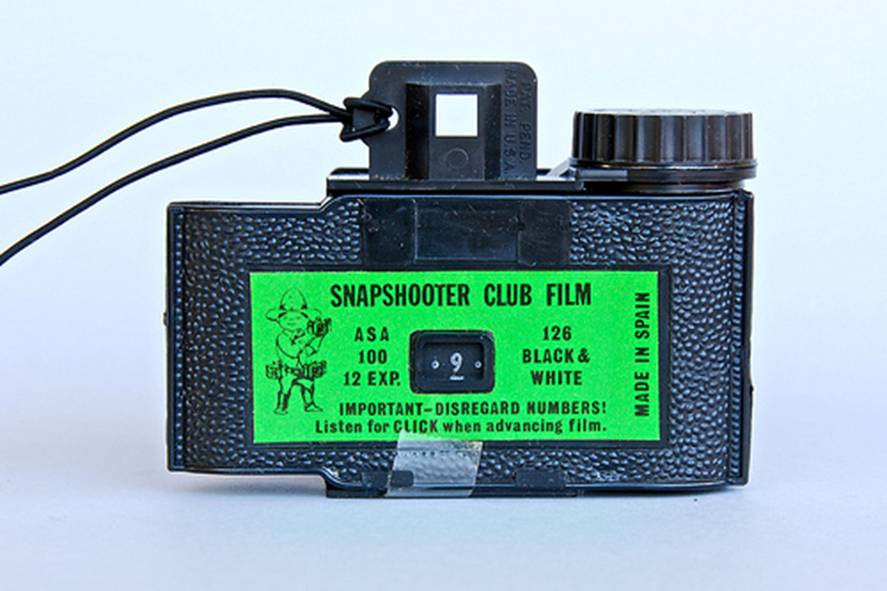

Plastic Developments Corporation Version



http://farm5.static.flickr.com/4077/4763872564_82cbaceaae.jpg

http://webspace.webring.com/people/dm/mbarel/ranger.jpg

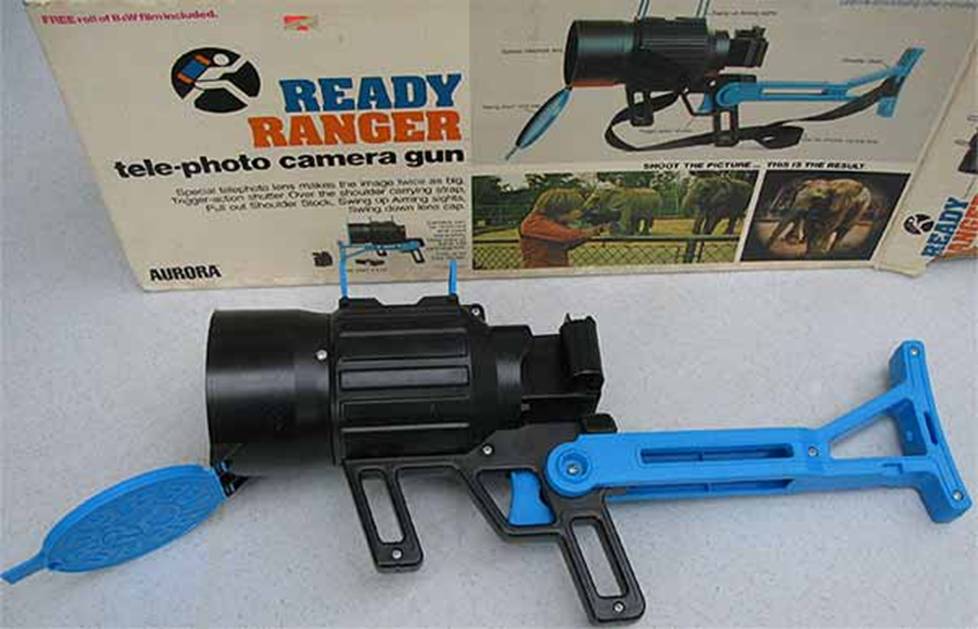

Telephoto mounted camera.

http://webspace.webring.com/people/dm/mbarel/ranger-camera.jpg

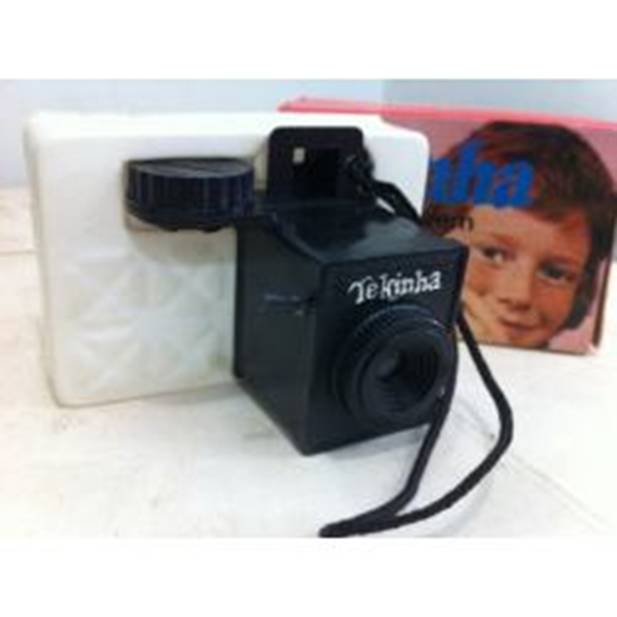

Brazilian made “Tekinha” from Frata.

http://www.mercadolivre.com.br/jm/img?s=MLB&f=194874388_8913.jpg&v=P&sll=818834
