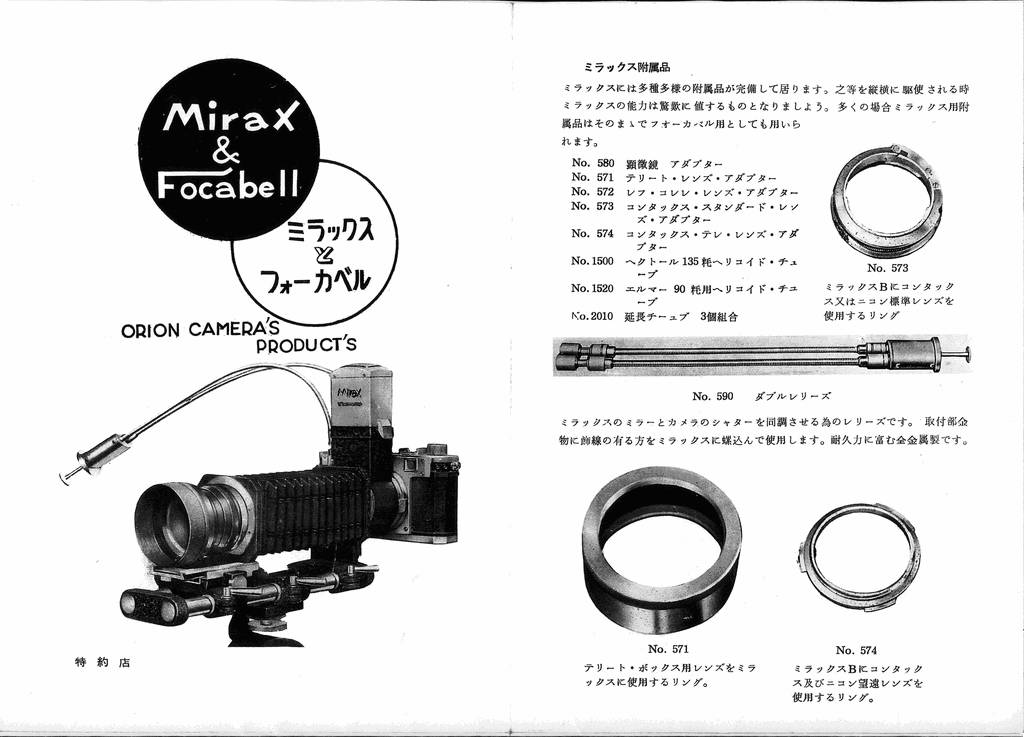

Mirax instructions

& System

VI

xxxxxxxxxxxxxxxxxxxxxxx

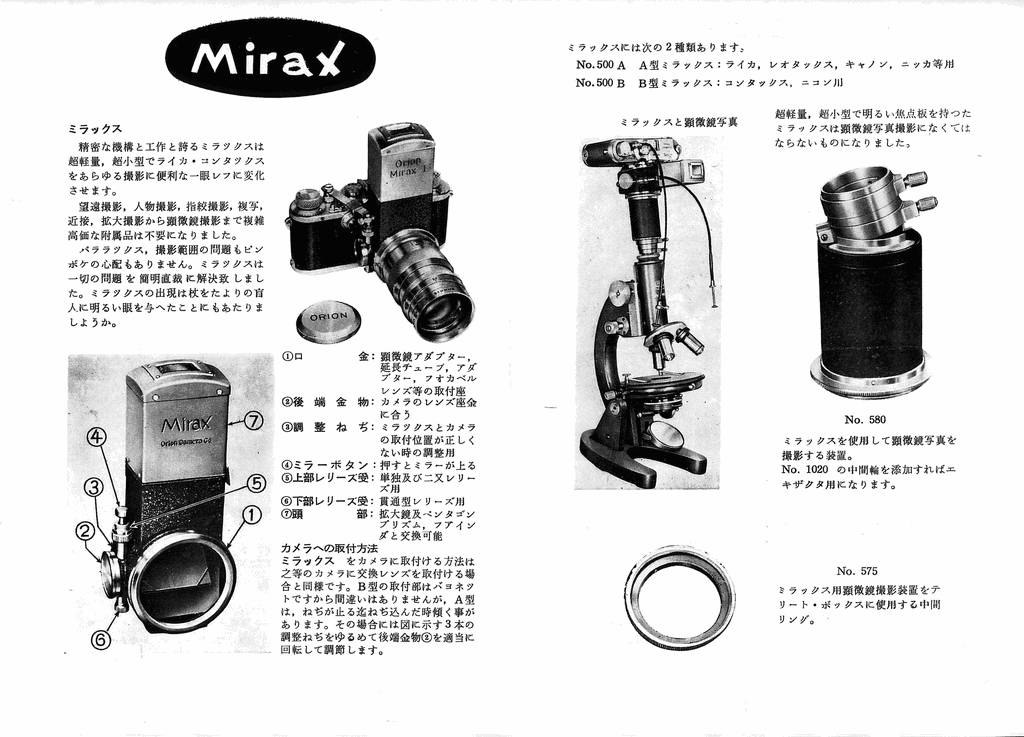

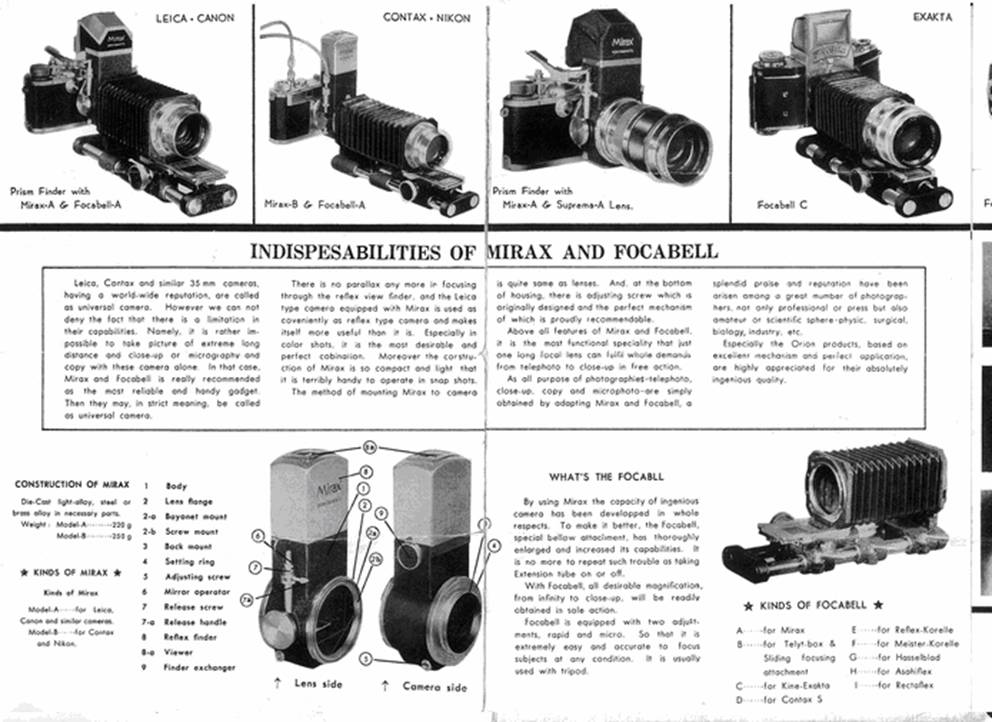

Two versions of the Mirax were sold, differing by the rear mount. The Mirax-A (#500A) fits Leica screw mount cameras. It has an adjustable rear mount, which can be rotated so that the reflex housing always stands upright, whatever the adjustment of the camera body.

The Mirax-B (#500B) has a Contax or Nikon rangefinder mount. These two mounts only differ by the rangefinder adjustment, causing no physical difference on the reflex housing. An original price list nonetheless distinguishes the "Mirax-BC" for Contax and the "Mirax-Bn" for Nikon, but this is either a mistake or a distinction based on the release linkages, because of the different location and shape of the shutter button on the camera bodies. The Mirax-B has the same body casting as the Mirax-A, but has a 9mm insert between the casting and the viewing screen, raising the latter to compensate for the longer film-to-flange register.

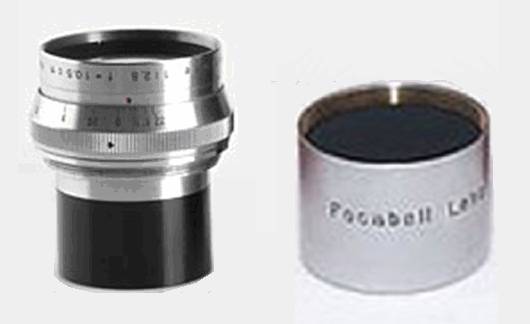

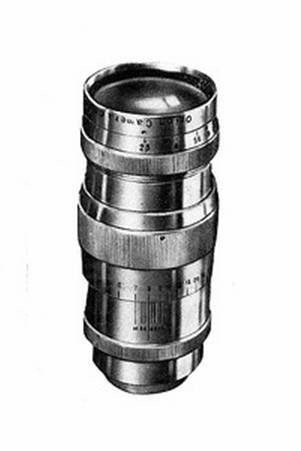

Supreme f2.8 /105mm Variations

For Mirax housings in two different tube lengths: Long and short for Mirax A and B respectively.

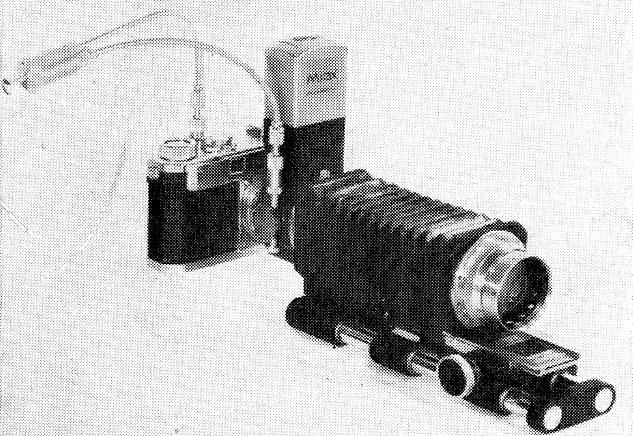

Short neck with extension tube for Mirax housings and Focabell bellows.

For Leica cameras rangefinder coupled.

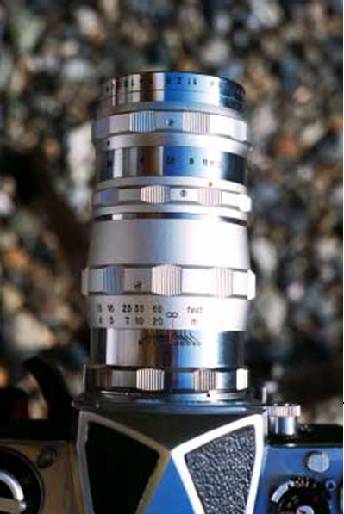

For Miranda and other SLR cameras.

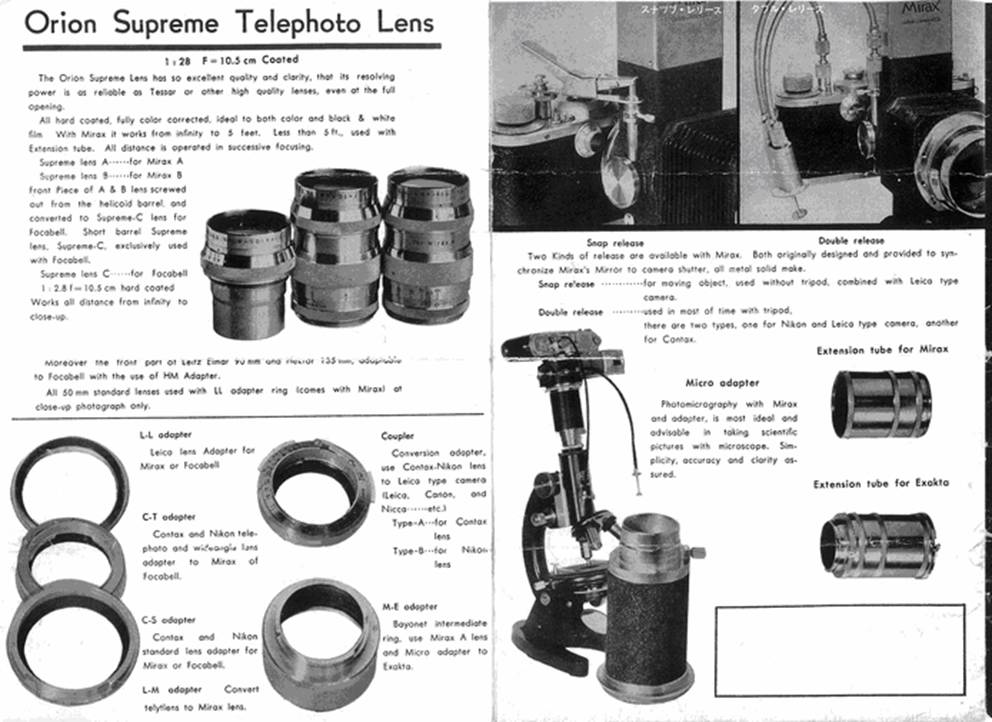

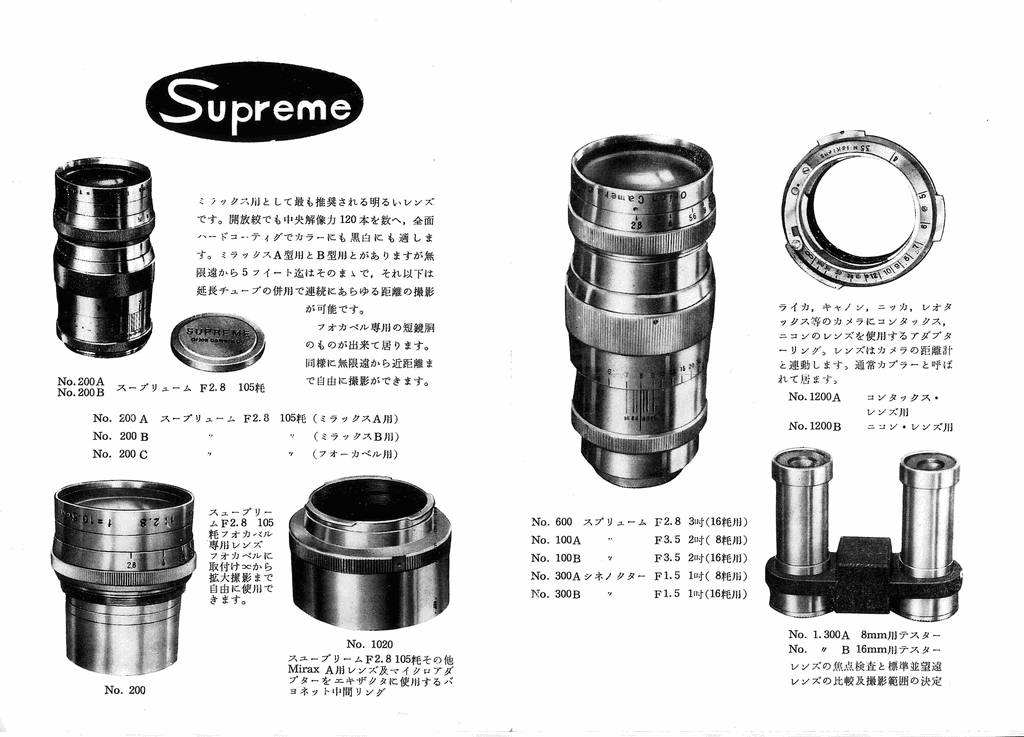

Supreme lens Versions and mounts.

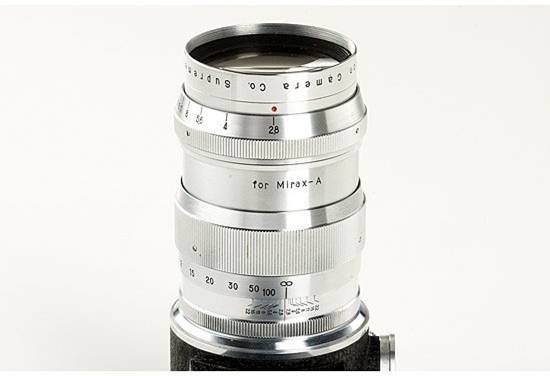

• model A, for Mirax, ¥12,000;
• model B, for "Telyt box" (Visoflex), ¥13,500;
• model C, for Exakta, ¥15,000;
• model D, for Contax S, ¥14,000;
• model E, for Reflex-Korelle (small mount), ¥14,000;
• model E', for Reflex-Korelle (large mount), ¥19,000;
• model F, for Meister-Korelle, ¥19,000;
• model G, for Primarflex (bayonet mount), ¥19,000;
• model H, for Asahiflex, ¥13,500;
• model I, for Hasselblad, ¥19,700;
• model J, for Rectaflex, ¥15,000.

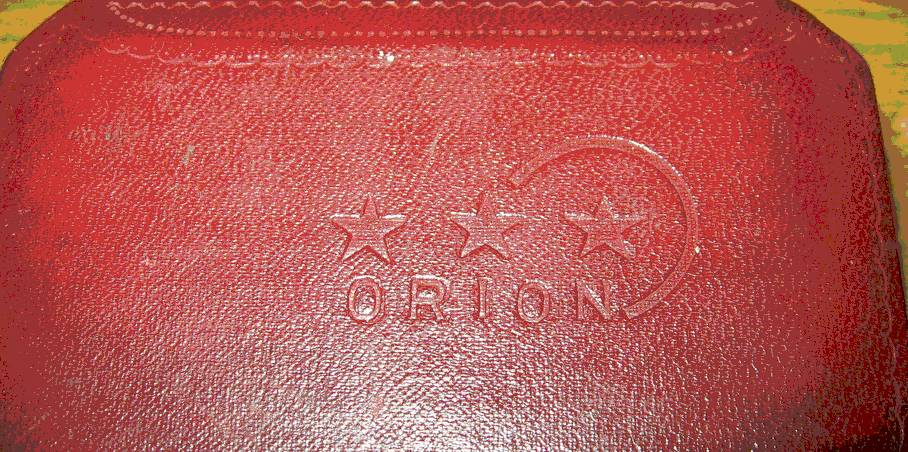

De Luxe case for Supreme lens

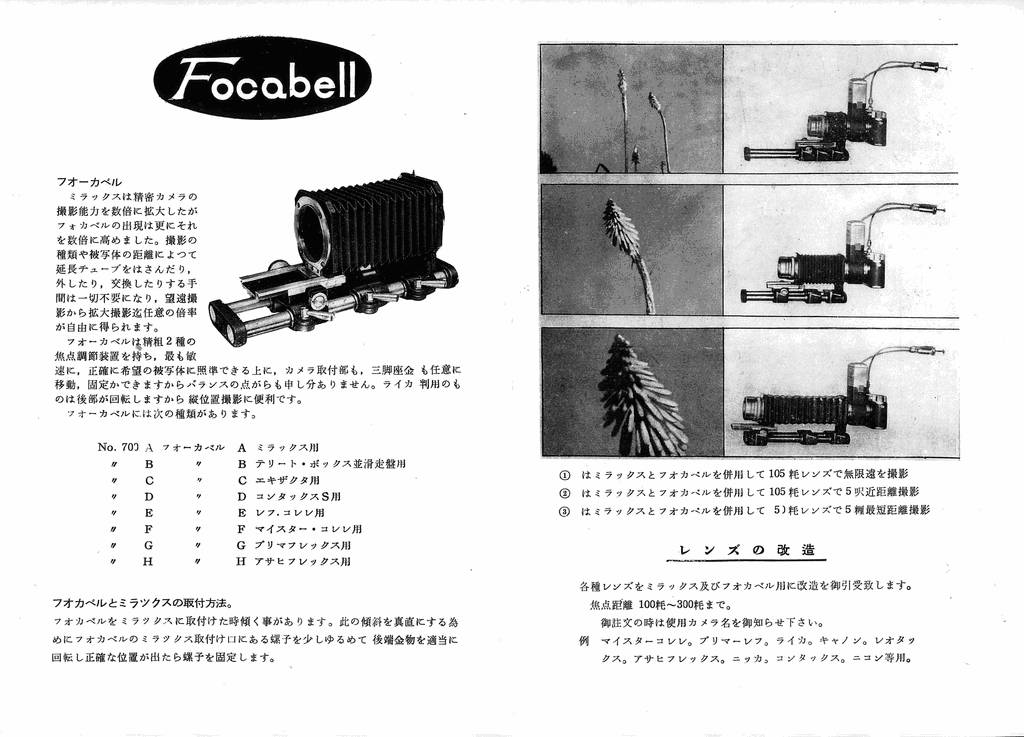

Focabell Variations

Focabell-A, for Mirax or Miranda screw mount

Focabell-AII, for Mirax or Miranda bayonet mount

Focabell-B, for "Telyt box" (i.e. PLOOT / Visoflex) and Focaslide

Focabell-C, for Exakta

Focabell-D, for Contax S

Focabell-E, for Reflex-Korelle

Focabell-E', for Reflex-Korelle (large mount), perhaps the Reflex-Korelle III

Focabell-F or FII, for Meister-Korelle

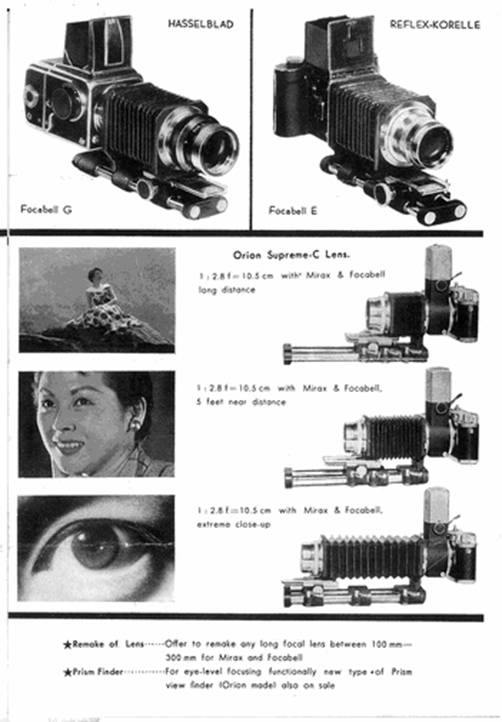

Focabell-E and Heliar 16.5cm, on a Reflex-Korelle





Focabell-G, for Primarflex and Tele-Hexar 40cm f/5.6,

Focabell-H, for Asahiflex

Focabell-I, for Rectaflex

Focabell-J, for Hasselblad with Heliar 16.5cm

Focabell-J and Tele-Hexar 40cm f/5.6, on a Hasselblad
