Wrayflex

 British only atempt in making a 35mm Single Lens Reflex camera.

Classified by the collector Peter Naylor as “WEIRD BUT WONDERFUL”, it is an oddity in itself.  A very sound and well built camera, originally designed to have an all mirror viewing system, it received a conventional pentaprism finder only in the third production series. Focal plane shutter ½ to 1/1000 plus B in coaxial dials. Mechanically speaking the body was very flat and little protuding following the previous Bolca/Alpa cameras. The mirror was designed not to interfere with the lens calculations, and allowed a much deeper lens mount designs (see further explanations). This camera was first shown at the 1950 British Industries Fair, and sold to public in 1951. Several odds included besides the all mirror finder. The 24x32mm format, the bottom advance key, albeit very effective and easy to use(but not when tripod mounted) - see camera cradle -  and the uncommom rewind key. The most interesting data to date, is that pehaps this should be the only camera in world  conceived by two women: Mrs. KATIE STUDDERT and Mrs. HELENA RUTH.



Wrayflex Ia von Dieter Brunow-Manalaki

Wrayflex II


Wray Ltd., Wrayflex II, 1954
24 x 36, Wray Unilite 2/50
Prismatic finder

 Wrayflex M41.2 ... mount 42.05mm register

Wrayflex II  face views



Model II view and key position on bottom (Ivor Matanle –Classic SLR Cameras)

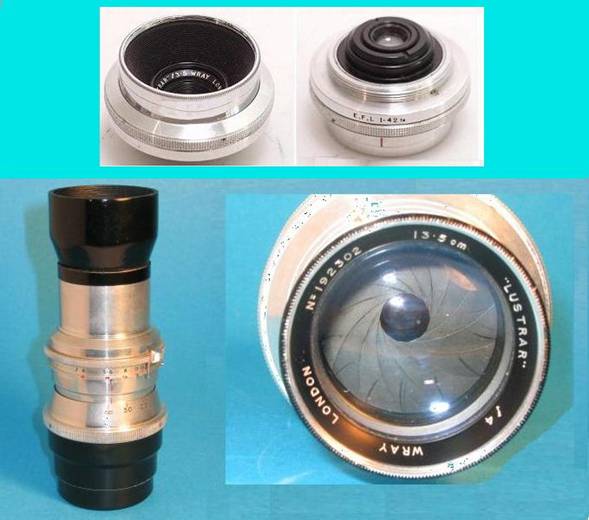

Lenses & accessories:

 35/3.5 Lustrar

 50/2.8 Unilux

 50/2 Unilite

 90/4 Lustrar

 135/4 Lustrar

 8”/4.5 Lustrar

eyepiece correction

diopters

tube set : 6mm, 7mm &

9.5mm tubes

Removable flash shoe

Tripod shoe with frame

advance gear



Patent:



Publication number:

US2608922

Publication date:

1952-09-02

Inventor:

KATIE STUDDERT HELENA RUTH

Applicant:

WRAY CAMERAS LTD

Classification:



- international:

G03B19/12; G03B19/12;

- European:

G03B19/12

Application number:

US19500172858 19500710

Priority number(s):

GBX2608922 19490713



Main models characteristics:

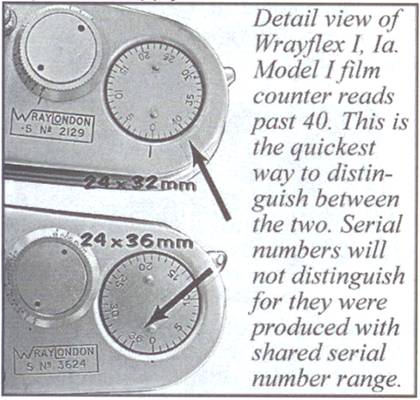

Wrayflex 1   24 x 32mm., all mirror. 45 pictures,  no shoe,  3  pin  contacts

850 units produced

Wrayflex 1a  24 x 36mm., all mirror.  36  pictures,  no shoe,  2 PC contacts

1600 units produced

Wrayflex 2   24 x 36mm., pentaprism. 36 pictures,  flash shoe,  2 PC contacts

300 units produced

Wrayflex I (Original)  face views

35/3.5 Lustrar

135/4 Lustrar

wrayflex

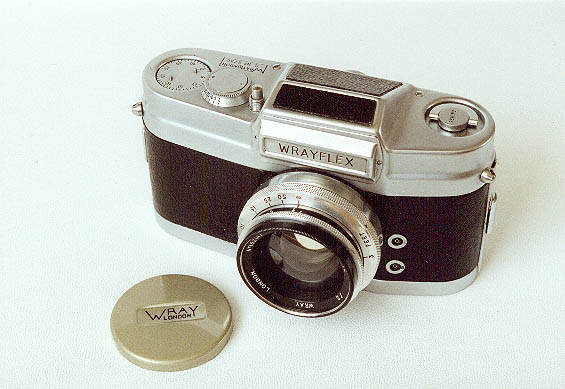

Wrayflex Ia w/ 50/2 Unilite



The Wrayflex cameraLoading the WrayflexLoading the Wrayflex



Wrayflex diagram showing partsWrayflex cutaway of optical system



Two Wrayflex lensesWrayflex - taking the picture

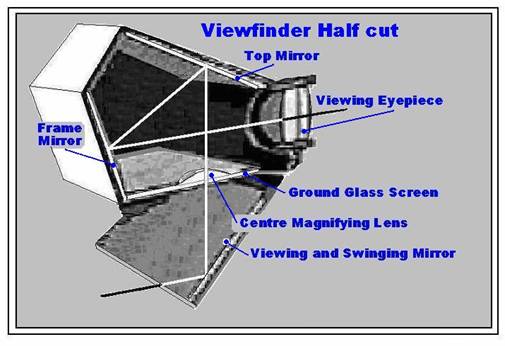

Optical path and parts nomenclature



Ground Glass Screen and Centre Magnifying Lens

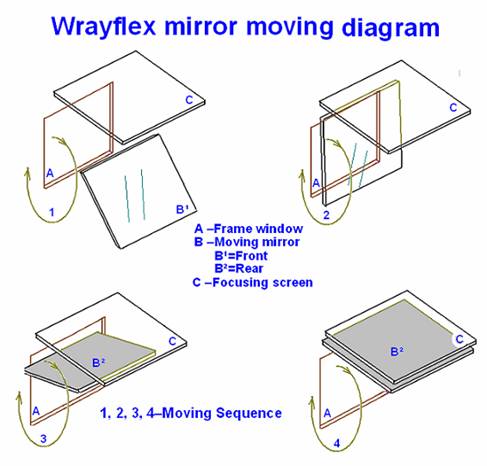

This ingenious moving system enables the camera to use deep lenses:

1-     Normal focusing position.

2-     The mirror goes back after firing the camera.

3-     The mirror continues its travel towards the screen.

4-    The mirror finally blacks all finder lights and the shutter exposes the film.





In this cut view schematics , one can feel the ingeniousity and advantages of such system, followed by no other camera. - The time lag is slightly larger than in conventional cameras,



from Mc. Keowns 12th edition 2005/2006





about synchro contacts:

In model I the two upper contacts are used with electronic flash (1/25 standard speed) the two lower contacts are for lamps.

In model Ia the upper socket is used for electronic units , the lower for lamps

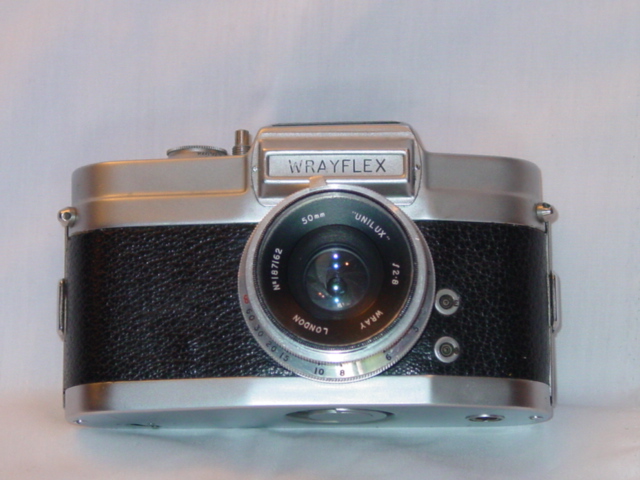

Wrayflex Ia w/ 50/2.8 Unilux  front view. One sees advance key and tripod screw.



¾ view



back view

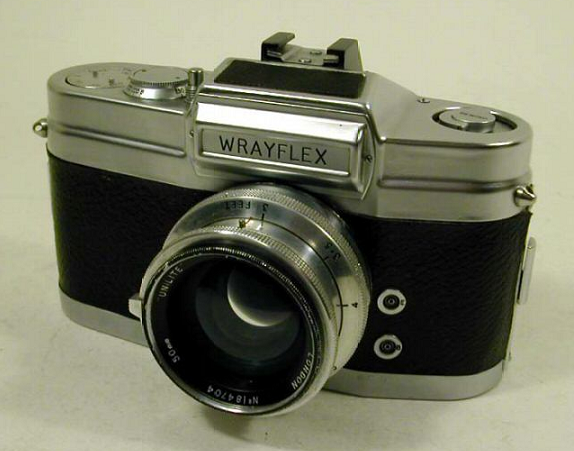

Wrayflex Ia w/ 50/2 Unilite and removable accessory shoe

Wrayflex Ia model.

Two pictures.

 camera and four lenses. 50/2 Unilite in the camera, and from left to right, 90/4 Lustrar, 35/3.5 Lustrar, lens cap, 135/4 Lustrar.

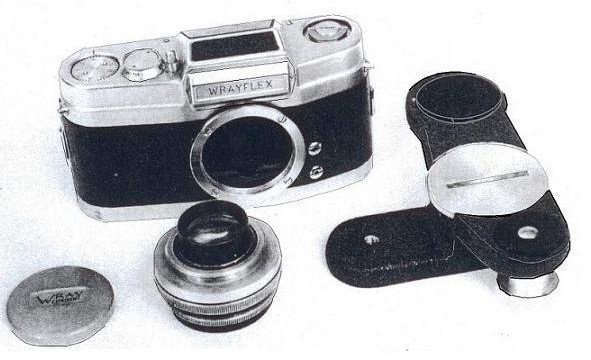

 camera, normal lens, lens cap, and tripod cradle.

The camera key engages in the slot of the knurled cradle wheel  in order to advance film with camera attached in the tripod.

(Ivor Matanle - Classic SLR Cameras)



 A rare system of camera model Ia, three Wray lenses 2/50, 4/90, 4/135 with the original enlarger with transformer and low voltage lamp



Instructions booklet





Focal Press Focal Guide,  by  Walter Daniel Emanuel  covering the Wrayflex. This is a First Edition from September 1954. 80 pages
