The shape evolution

Flexaret 5 5^a

Main Characteristics:

Automatic twin-lens reflex camera for roll film – 12 pictures 6x6 cm and 34 pictures 24x36mm  (Model V) No 35mm film rewind – (Model Va) with rewind device

Lenses: viewfinder - Anastigmat 3/80, camera lens -  Belar 3.5/80

Shutter: SVS/LV size# 00 B, 1 – 1/300 or Metax size # 00 B, 1 – 1/400.

Film feed: by knob with automatic stop simultaneous winding-up of shutter.

Picture counter:12 pictures seen in automatic external window.

Release: coupled to film advance with auto release – includes lock.

Year of production: 1958-61

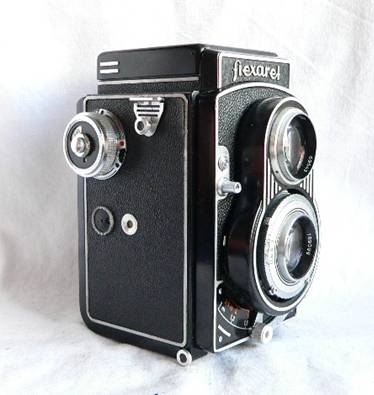

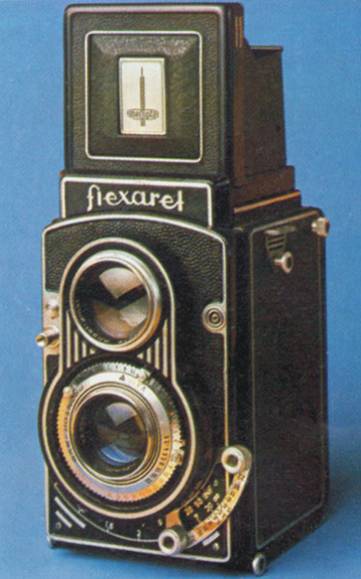

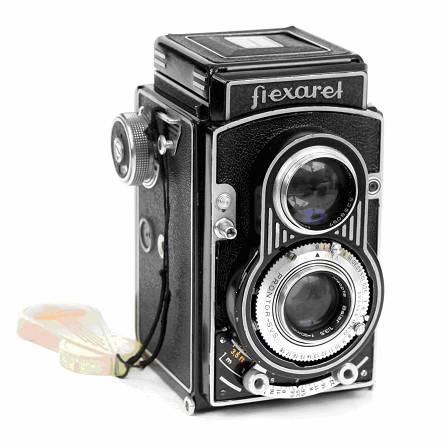

Model V Classic

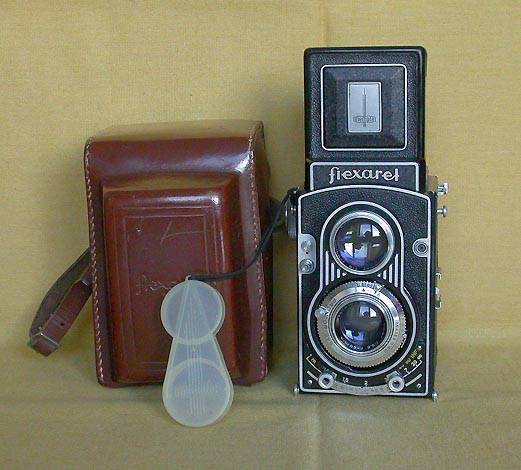

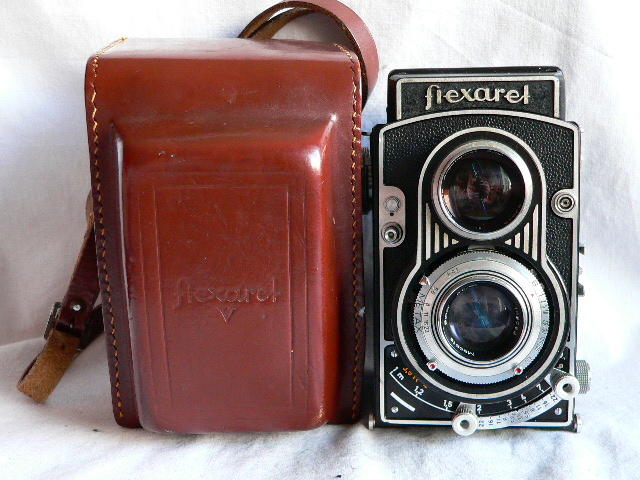

Model Va and eveready case Metax shutter

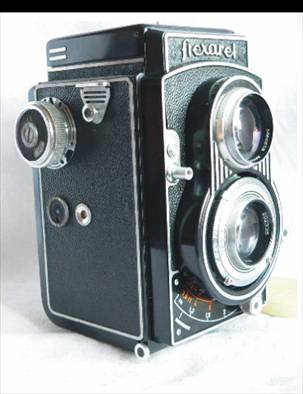

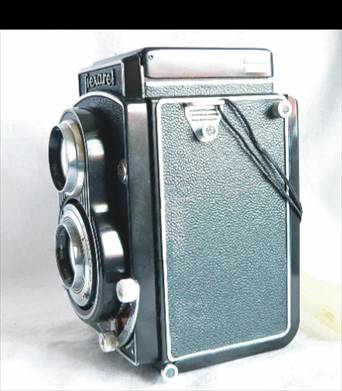

Model V (left) No rewind – Va (right) with rewind device – Comparisons -

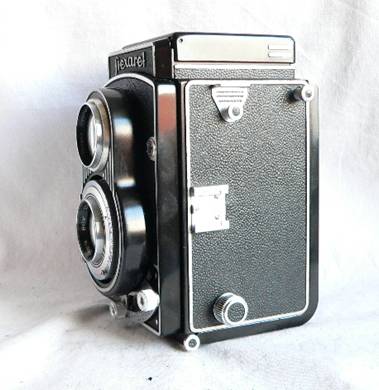

See the clutch and rewind button absent in model V

Both with Metax shutter

xxxxx

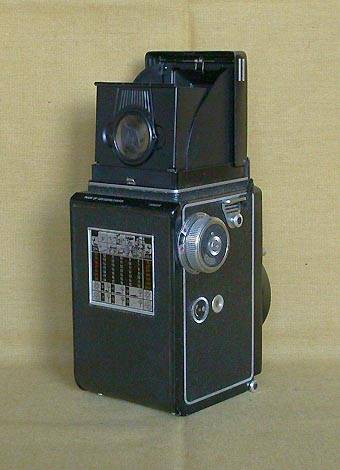

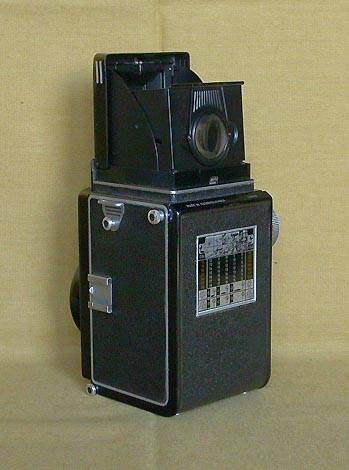

Model V no rewind variation. Shoe and Rollei style exposure guide.

Prontor SVS LV

xxxxx

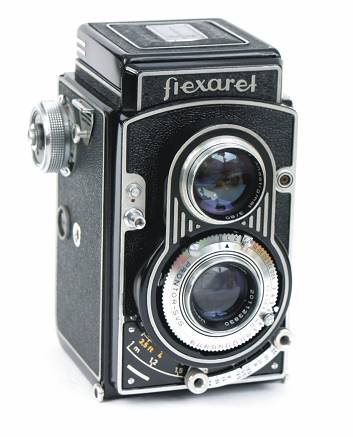

Model V with no rewind device Prontor SVS LVS shutter





xxxxx







Model Va with rewind device Prontor SVS LVS shutter



xxxxx

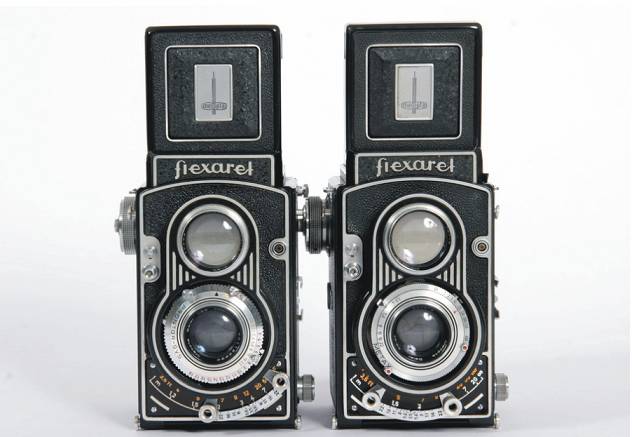

Two variants: with Prontor SVS LV and with Metax shutters

From the collection http://www.kostikidis.estranky.cz/fotoalbum
