The leap



Flexaret 4 4^a



Main Characteristics:

Automatic twin-lens reflex camera for roll film – (Model IV) 12 pictures 6x6 cm – (Model IVa) 12 pictures 6x6 cm and 34 pictures 24x36mm

Lenses: viewfinder - Anastigmat 3/80, camera lens -  Belar 3.5/80
Shutter: Prontor SVS or SVS/LV size# 00 B, 1 – 1/300 or Metax size # 00 B, 1 – 1/400.
Film feed: by knob with automatic stop.
Picture counter:12 pictures seen in automatic external window.
Release: coupled to film advance with auto release.
Year of production: 1955-59

This model received a new updated body used throughout its last model.

This model had the first all automatic film transport stop coupled to the firing button.



Series production Flexaret IV and IVa

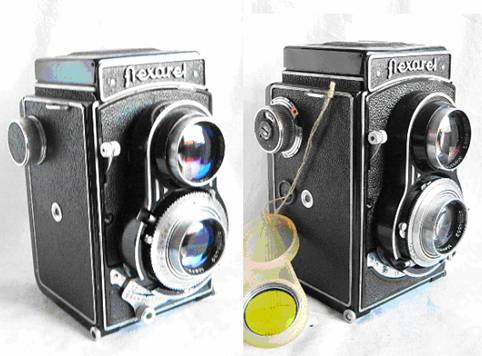

See differences in advance knob and counter

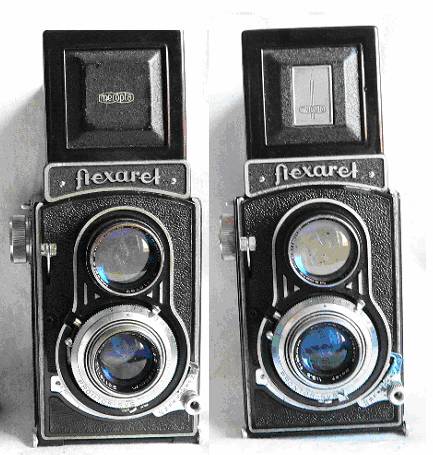

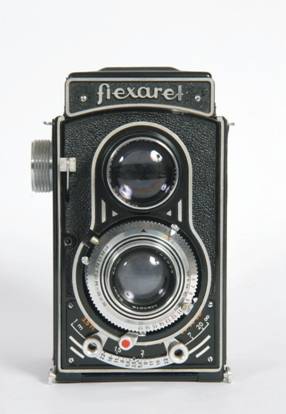

Model IV  and IVa both with Prontor SVS

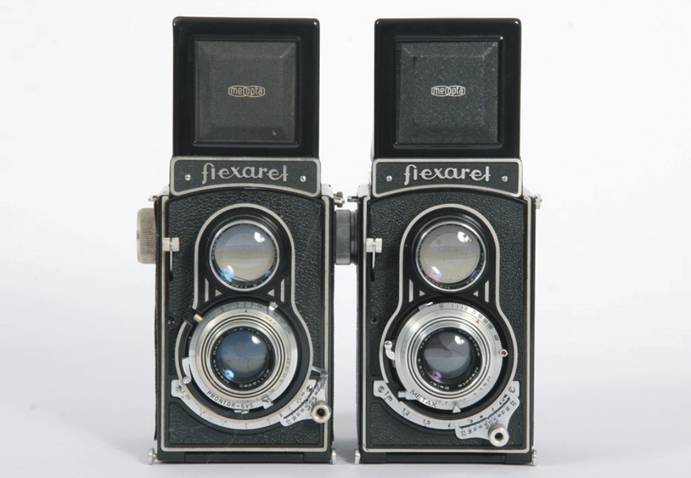

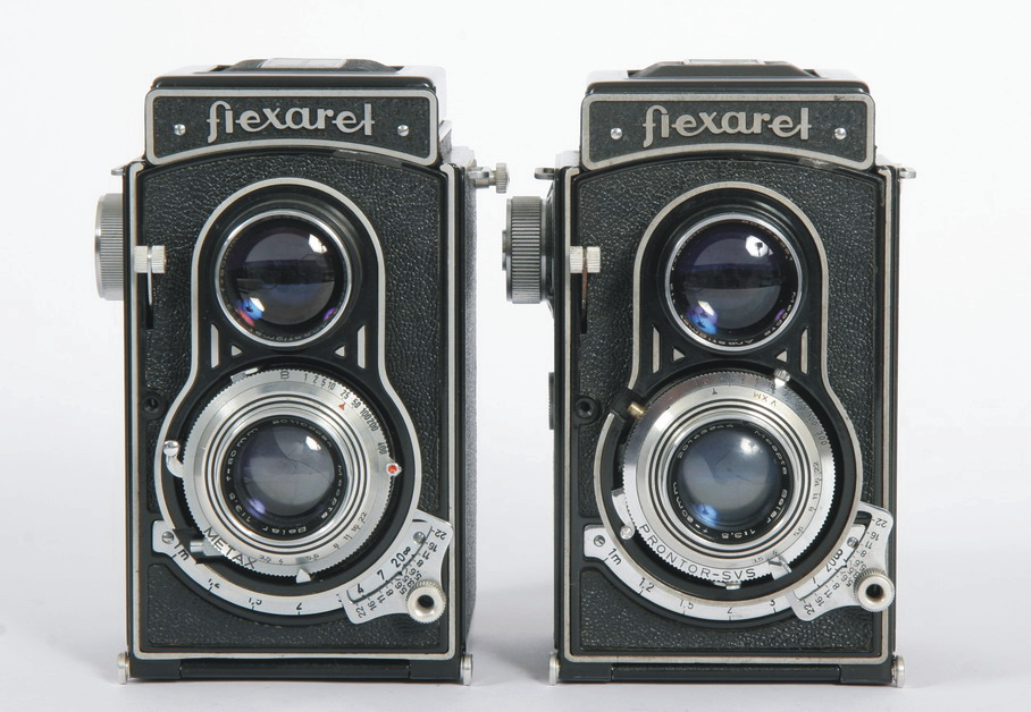

Model IV with Prontor SVS and IVa with Metax shutters



xxxxxx

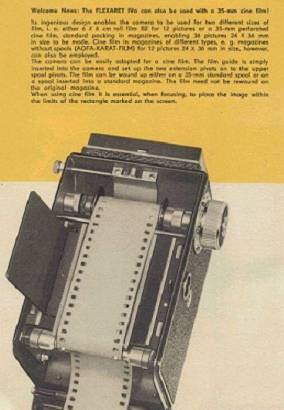

How works the 35mm adapter

Model IV with Prontor SVS LV and two point focusing lever plus double exposure firing lever. This model is sometimes called IV b.

Model IV with Prontor SVS LV single point focusing lever



xxxxxx

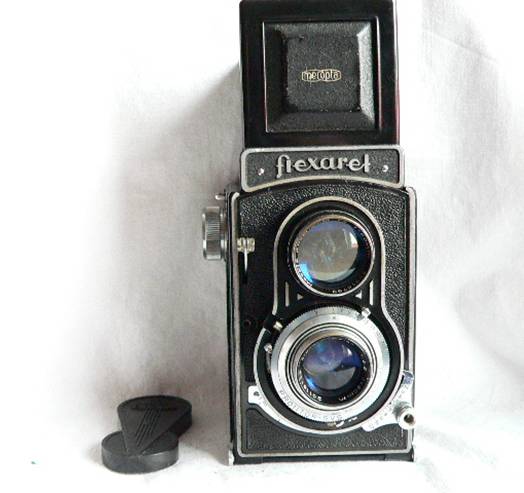

Model IVa with Metax (three photos)



xxxxxx

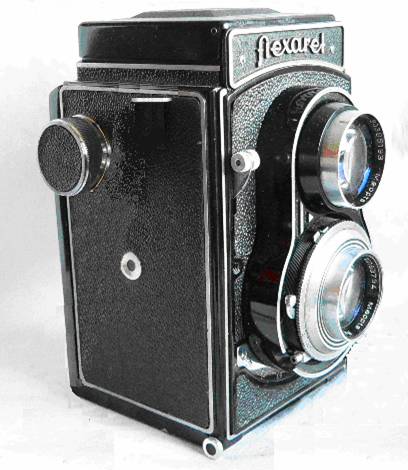

Now a model IV with Metax shutter (three photos)









xxxxxx

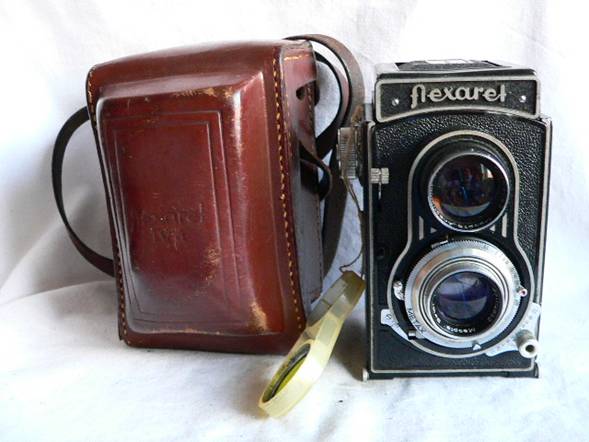

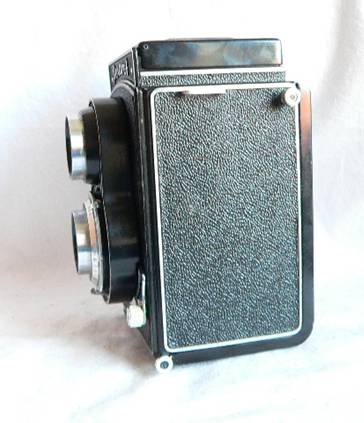

Now a model IV with Prontor SVS LV shutter (three photos)

xxxxxx

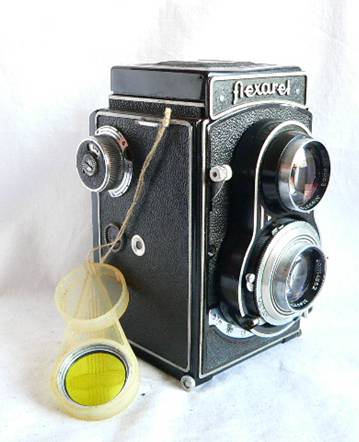

A model IV with Prontor SVS (three photos)



xxxxxx

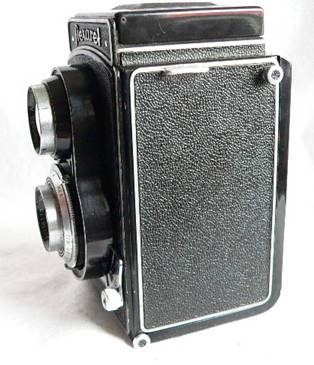

A model IVa with Prontor SVS (three photos)

xxxxxx



The variations

Model IV Prontor SVS and Metax versions



Model IV a  Metax and Prontor SVS versions





Model IV b Metax and Prontor SVS LV

From the collection http://www.kostikidis.estranky.cz/fotoalbum
