Making itself known
Imposing the personality
Flexaret II

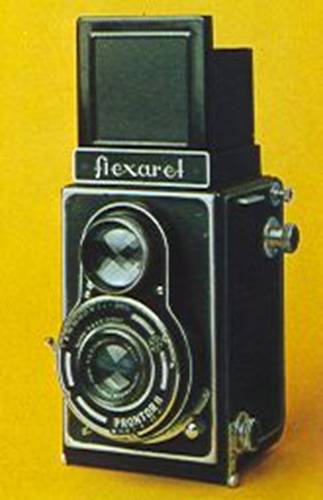

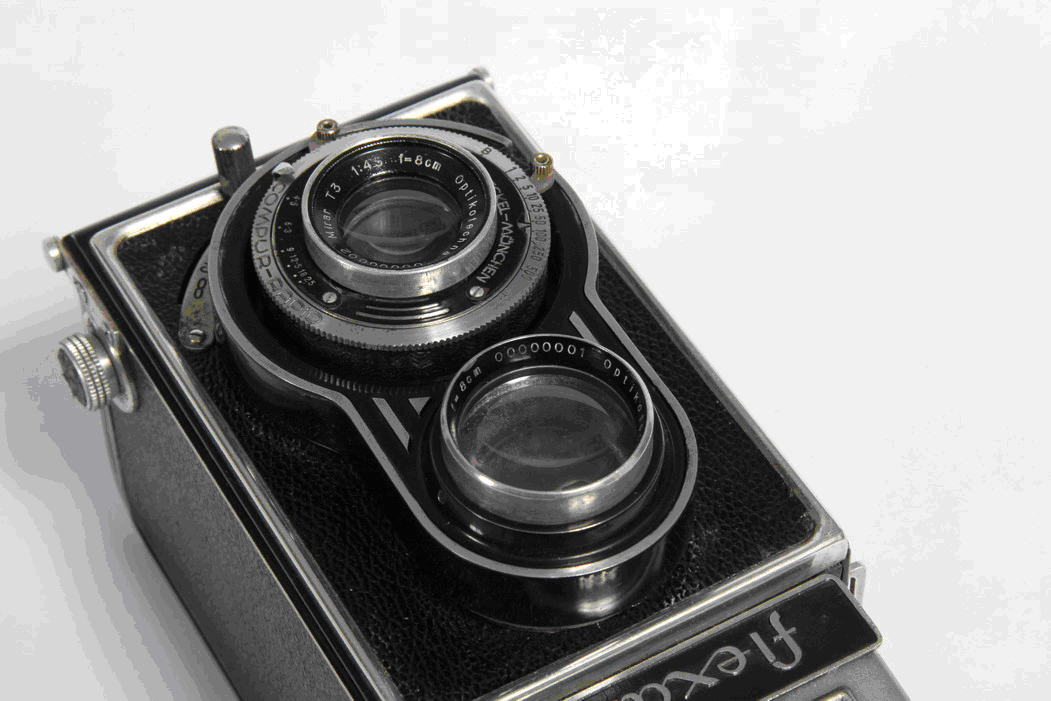

Two Prototypes of Flexaret II, with finder lens: Optikotechna-Anastigmat 3/8cm no.00000001, taking lens: Optikotechna Mirar T3 4.5/8cm no.00000001 and 00000002 Prontor II and Compur-Rapid versions. These Flexarets determined the decisive design adopted in all its following life. 1946 issue. This 00000002 lens camera has a curious history. See below.
Flexaret2 2/a
Main Characteristics:
Twin-lens reflex camera for roll film - 12 pictures 6x6 cm.
Lenses: viewfinder - Anastigmat 3/80, camera lens - Mirar 4.5/80. or Mirar
II 3.5/80
Shutter: Compur size# 00 B 1-1/300 or Prontor II size# 00 B,T 1 – 1/175 or
Prontor S or SV size# 00 B, 1 – 1/300 or Metax size # 00 B, 1 – 1/400.
Film feed: by knob.
Picture counter:12 pictures seen in red window.
Release: independent of film advance.
Year of production: 1948-54.
This model shares the same body of Flexaret 1 but has an improved solid unit lens focusing offering the highest picture quality and soon introduced a new finder cover with “sport” type open frame viewfinder.

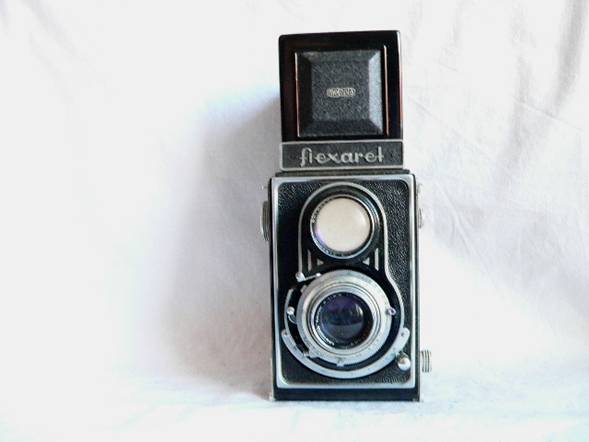

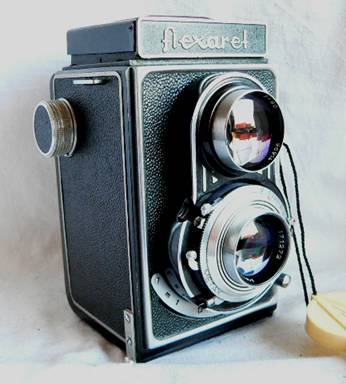

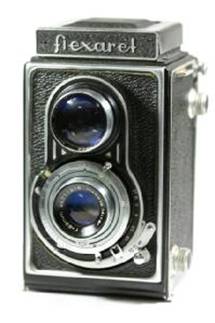

Series production Flexaret II Compur Rapid Mirar II 3.5/80

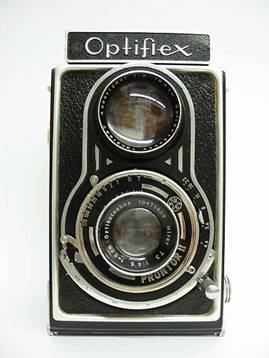

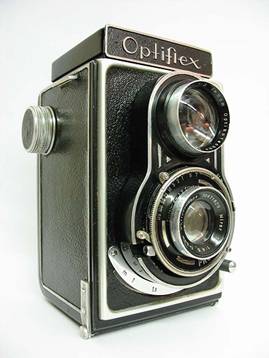

Optiflex a name variant (Mirar 4,5)

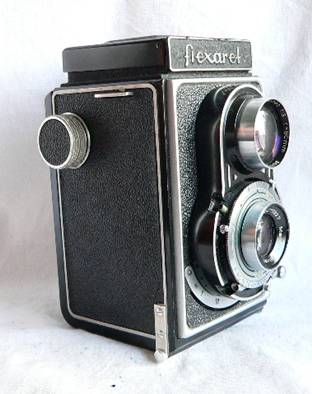

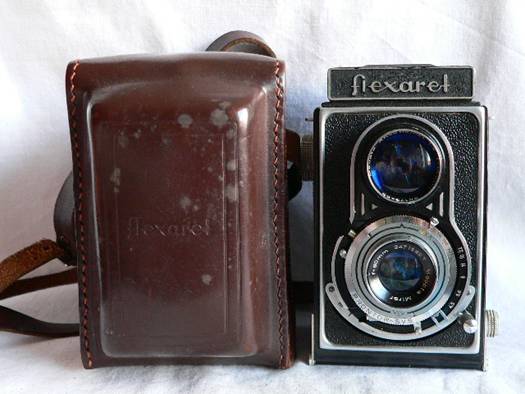

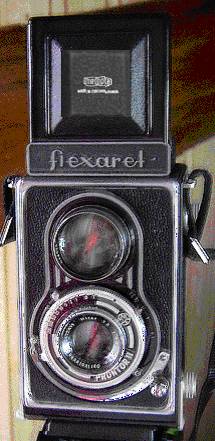

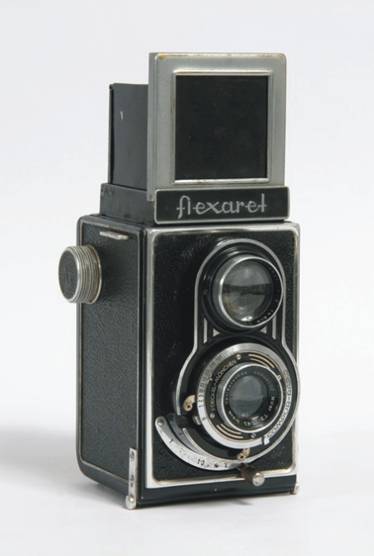

Series production Flexaret II Prontor II/Mirar 4.5

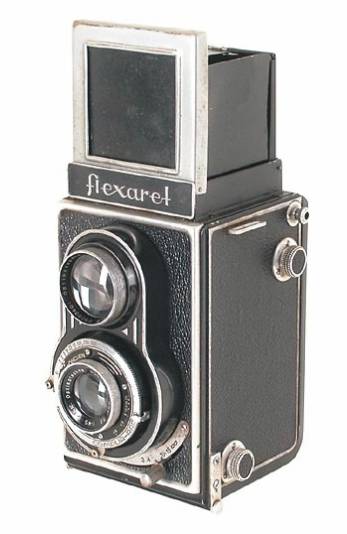

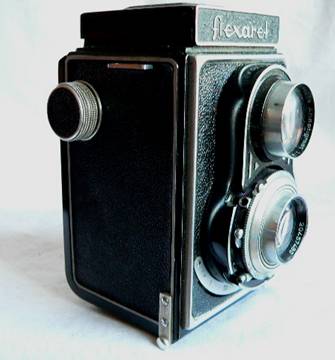

Series production Flexaret II Prontor SVS Flash Synchronized Mirar 4.5
v

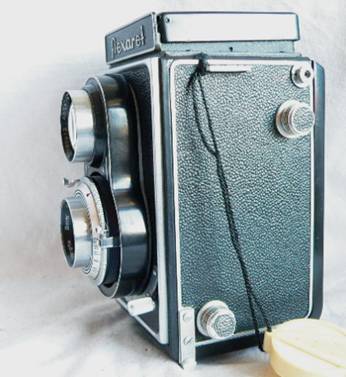

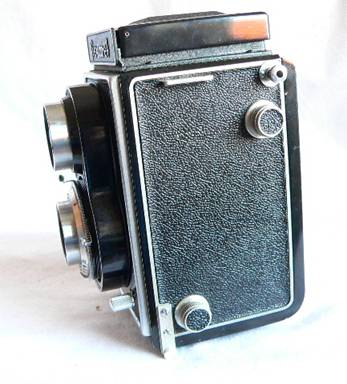

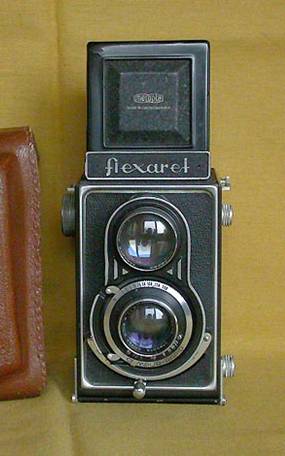

Prontor and Mirar 4.5 model (two photos)
xxxxxx

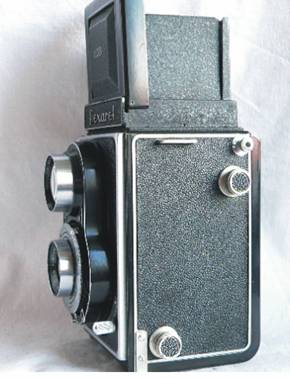

Series production of a rare Flexaret II model with Metax and Mirar II 3.5 (5 photos)
xxxxxx
Curiosities

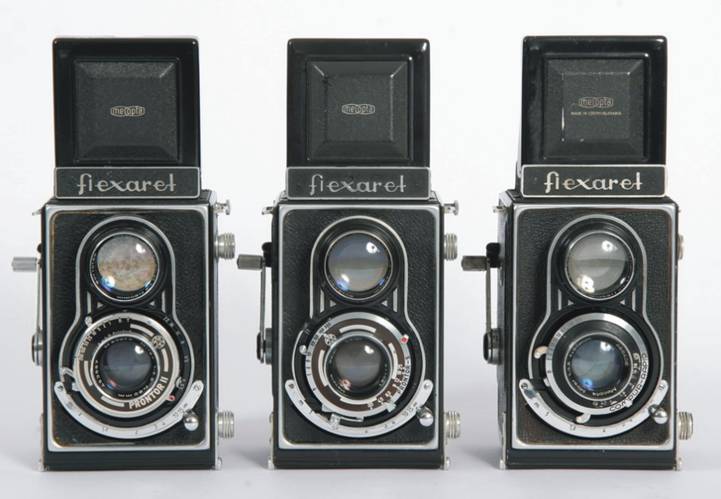

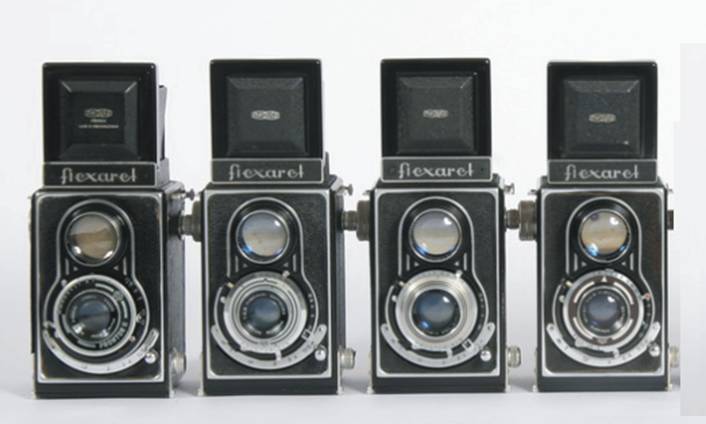

A collection of Flexaret II

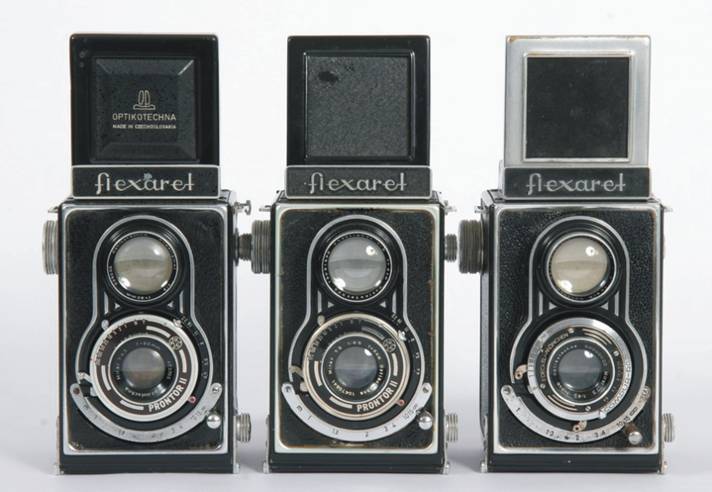

First row: Three Mirar 4.5/80 models Prontor II Prontor II Compur
Second row: Three Mirar II 3.5/80 models Prontor II Prontor S Compur Rapid
xxxxxx

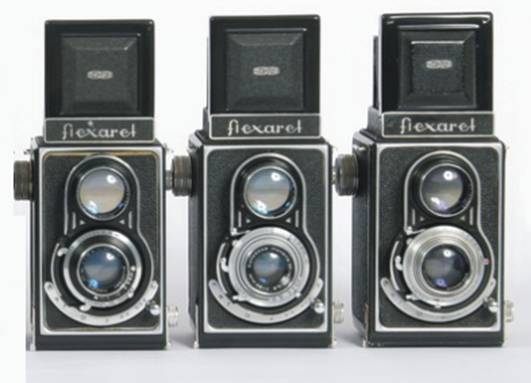

More Flexaret II
First row: Mirar 4,5 Prontor II, Mirar 4,5 Prontor S 2nd series,
Mirar II 3,5 Prontor S 2nd series, Mirar 4,5 Prontor S 1st series.
Second row: Mirar II 3.5 Compur Rapid; Mirar 4.5 Metax; Mirar 4.5 Metax.
Those Metax versions shared market with Model III, as a lower priced option.
The philosophy was the same of that applied on Rolleiflex/Rolleicord series.
xxxxxx

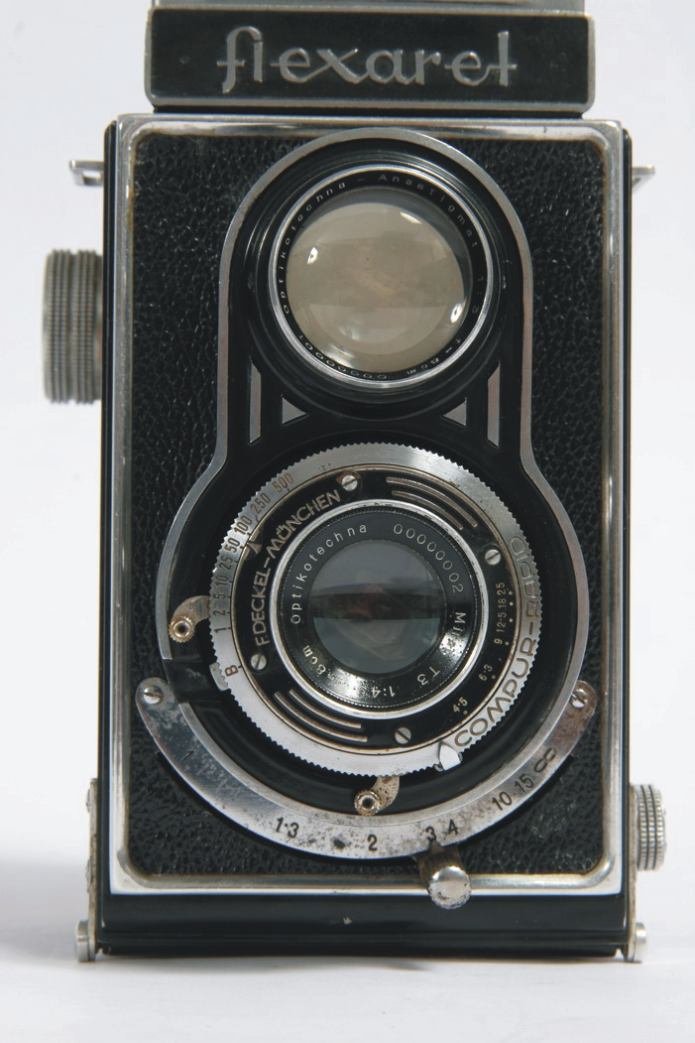

Extraordinary find from Westlicht Auctioneers!
This same Flexaret camera is shown at the beginning of the article was the first of a commercial production, It was used on the advertising leaflet to distributors.

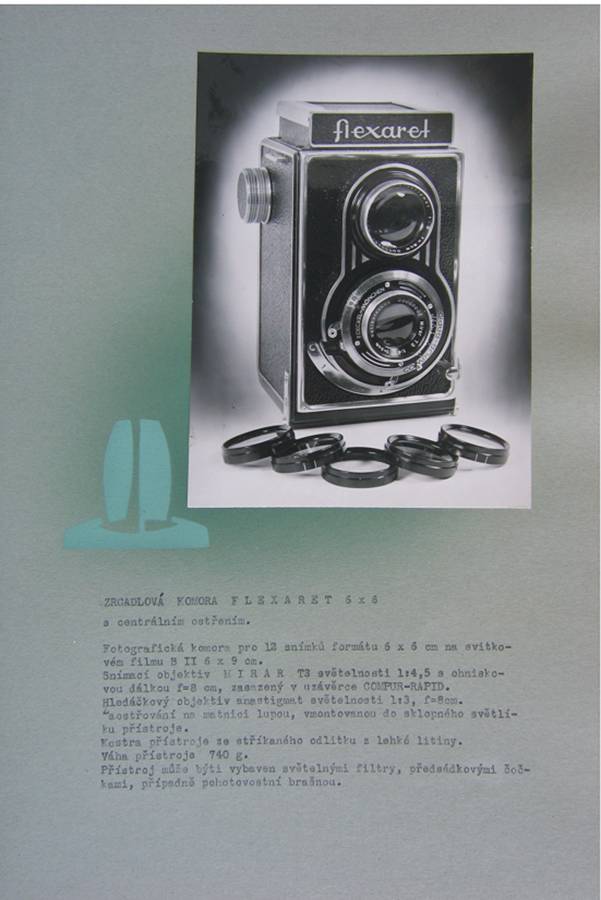

Advertising leaflet study
Two details of camera
Click to view Flexaret Trio
